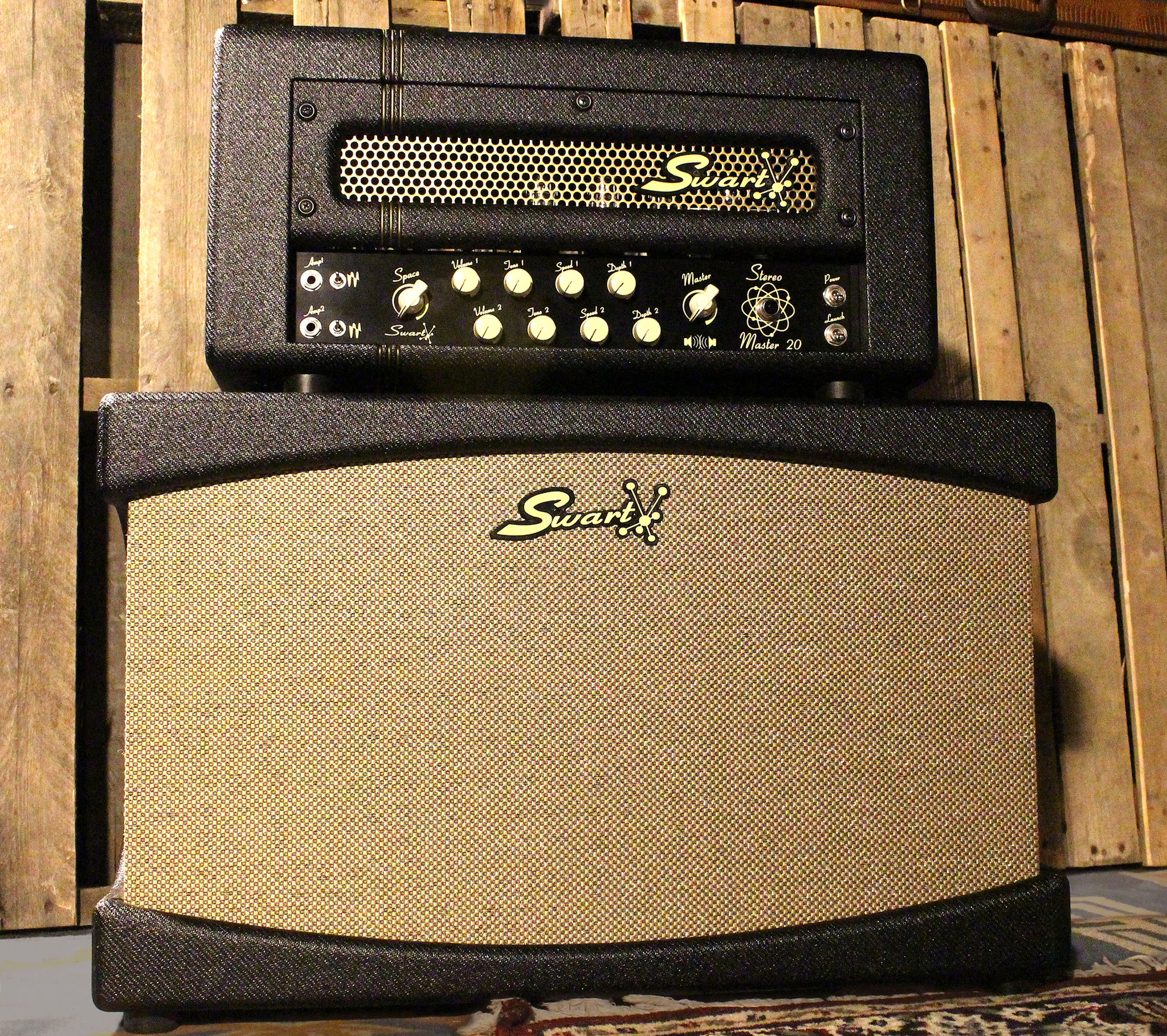

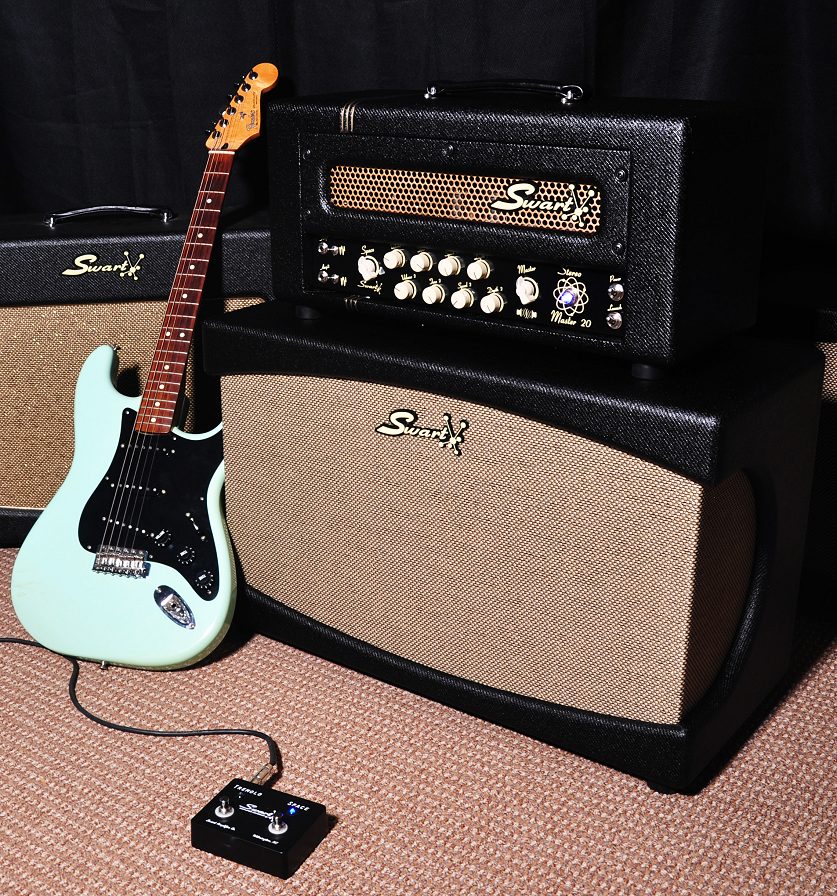

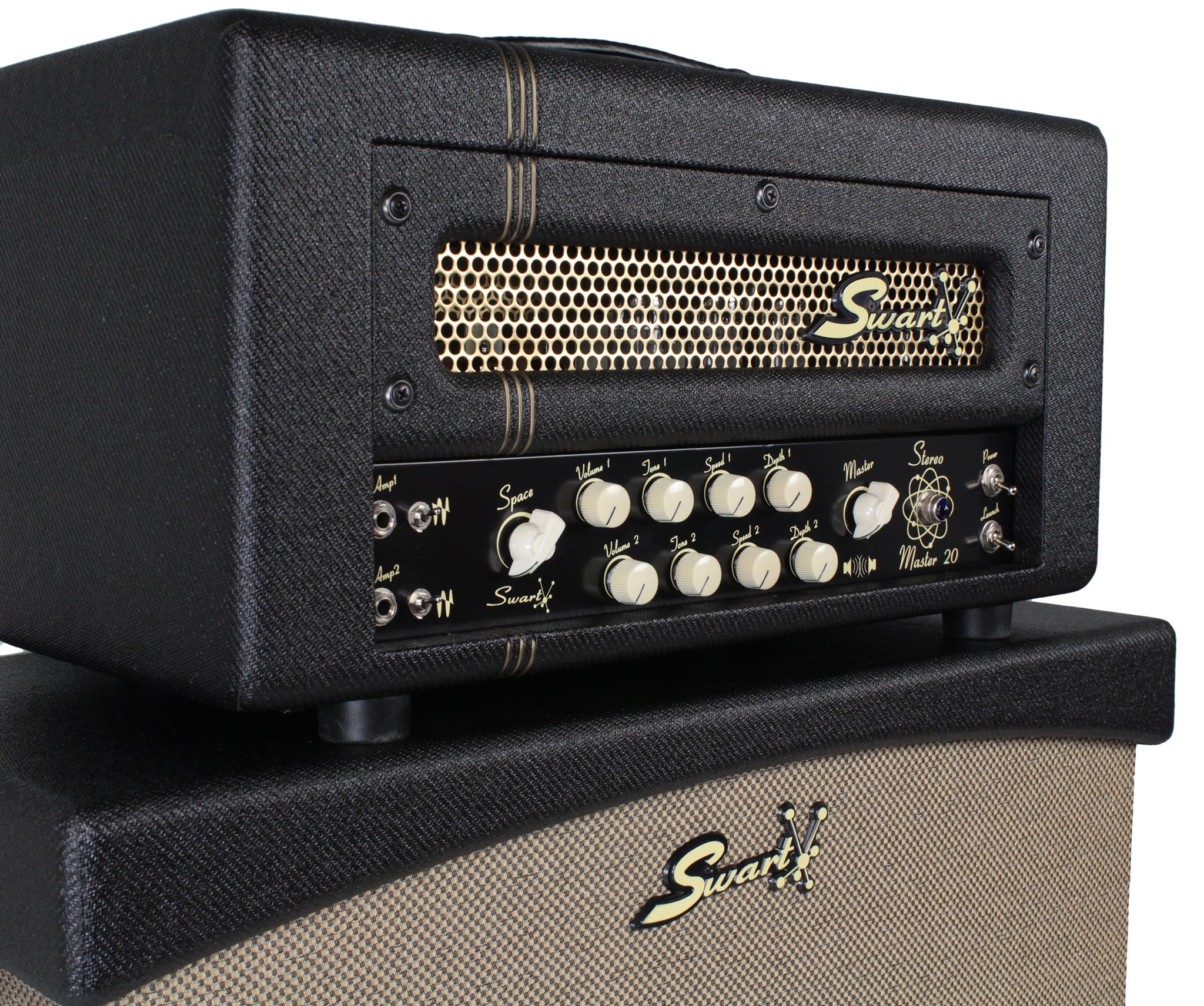

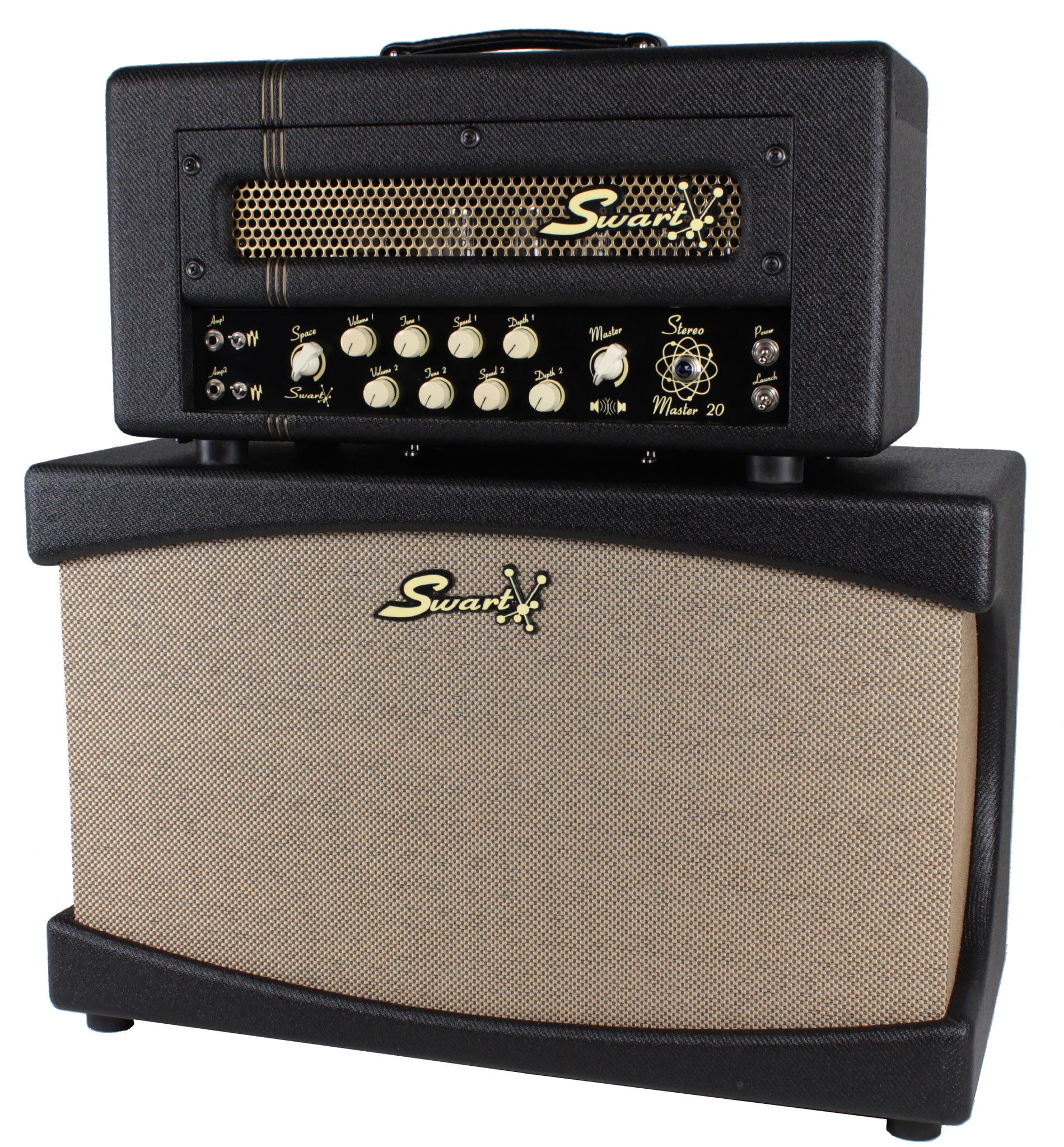

Swart Stereo Master 20 Head, 2x12 Stereo Cab, Dark Tweed

Availability: In Stock Now!


$ 4,997.00

Get your Swart Stereo Master 20 Head and Cab at Humbucker Music, the largest Swart dealer in the world with the biggest inventory for sale and in stock!

The Swart Stereo Master is the 20 watt + 20 watt big brother to the amazing ST-Stereo. In addition to more output, the Stereo Master adds a Master Volume to the circuit.

This unique amp has really been a long time coming but the wait is worth it. This is Swart Amplification's greatest 6V6/6L6 stereo push-pull effort to date. Dual 20 watt handwired amps in one chassis, each with separate controls for EQ & Tone along with all-tube driven spring tank reverb and dual Tube Tremolos with a unique Stereo Master Volume control. Simply put, you have to hear it to understand how BIG this thing sounds. The dark tweed head is truly something special. And it will take 6V6 or 6L6 for a bit more headroom. Rectifier options include 5AR4, 5U4, and 5Y3 for most sag/compression and sweetness.


Dual 20 Watt Outputs
Preamp Tubes:
4 x 12AX7 and 1 x 12DW7 (for reverb)
Power Tubes: 4 x 6V6 (2 each output, cathode biased)
Rectifier Tube: 5AR4 (use 5Y3 for less headroom and more sag)

Outputs: Dual Speaker Outs, each with 4,8,16 ohm selection switch
Head Dimensions: Coming Soon!

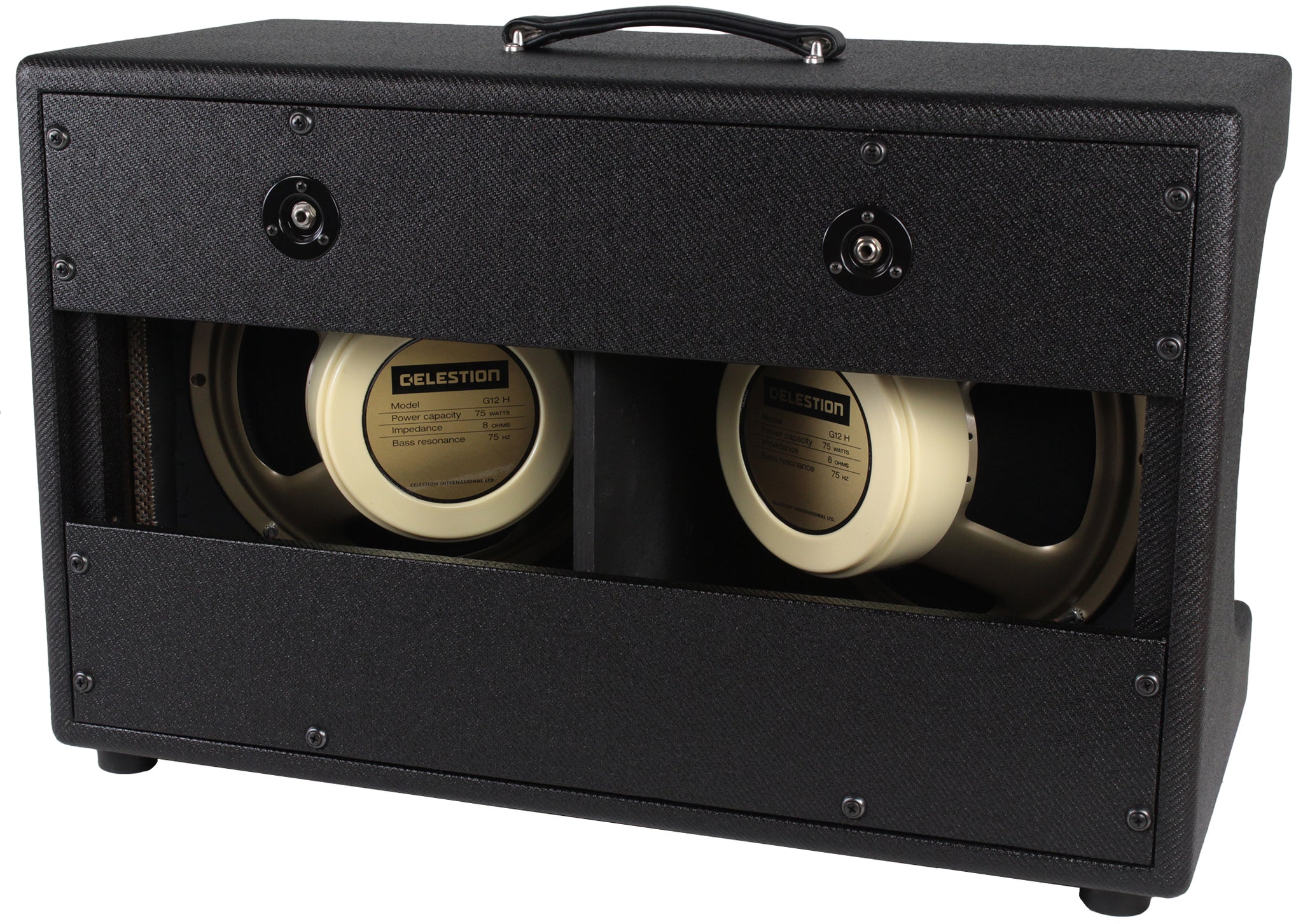

Cab Dimensions: 17.5" Tall x 28" Wide x 13" Deep - 46 lbs
Speakers: 12" Celestion Creambacks (optional AlNiCo Golds)

Additional Features:
  • Point to Point - All Hand Wired - Hand Built in the USA!
  • Twin 6V6 per amp (4 x 6V6 in total), cathode biased (option twin 6L6's)
  • Tube tremolo with custom Speed Sweep / Depth
  • Tube reverb circuit for superior audio massiveness
  • Hi / Lo Inputs for better Pickup matching
  • Heavy Duty Output transformers are custom designed by Swart
  • Carbon Comp Resistors, Mallory, Sprague and JJ Caps
  • The best silver tinned cloth and Teflon covered wire available!
  • Standby Switch incorporated into the design to extend tube life
  • Dedicated 2 Button foot switch (included)
  • Hand-made, finger jointed solid pine cab (an integral part of the tone)
Stereo Master 20 Guitar Signal Flow Chart:
