Mesa Boogie Grid Slammer Overdrive Pedal

Availability: In Stock Now!

Mesa Boogie

$ 179.00
You may want these related items:
  • DESCRIPTION

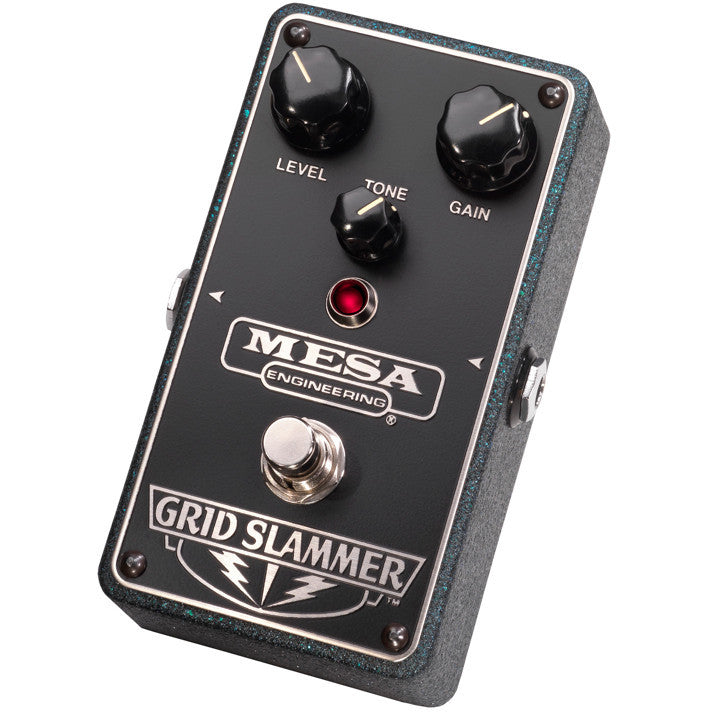

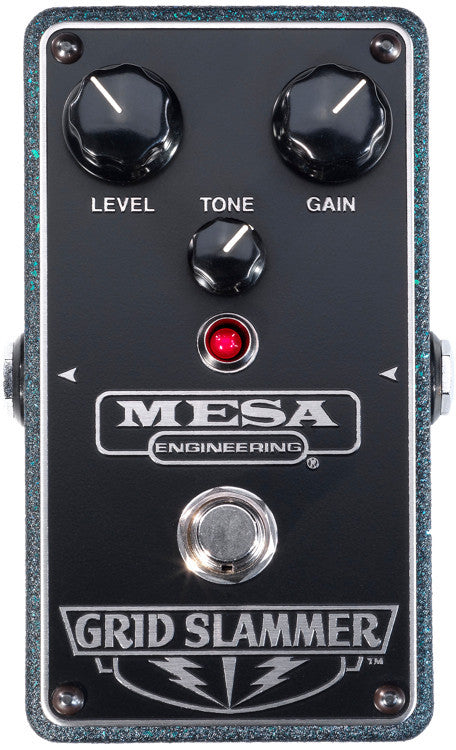

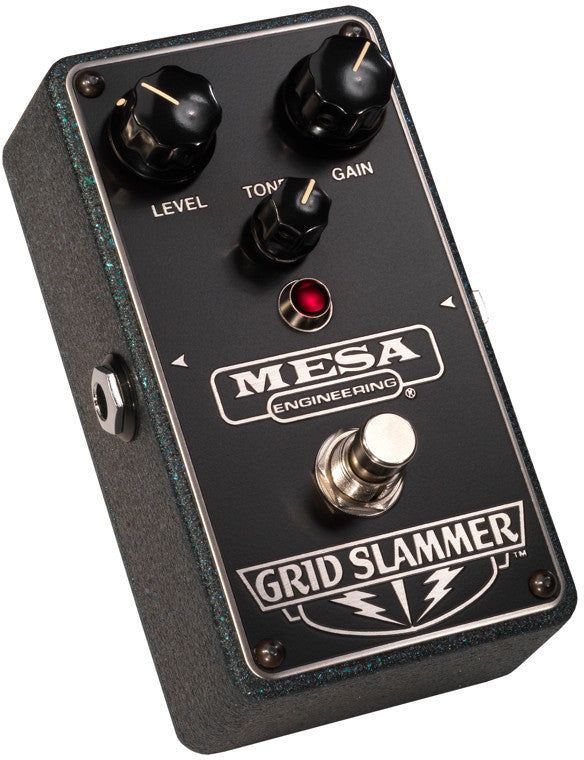

GRID SLAMMER Overdrive Pedal

The GRID SLAMMER Overdrive is an overdrive pedal that produces a variable boost in gain over a wide range with a classic, guitar-centric midrange bump that enhances many different playing styles. It’s a true overdrive "specialist" that covers an amazing array of what many top players consider the most expressive and musical ranges of overdrive. From sweet, subtle breakup to a harmonically smoldering overdrive that can both sting and sing, the GRID SLAMMER sets a new bar in legendary overdrive!

•  Custom Designed AND Hand-Built in Petaluma, California, USA
•  True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss
•  Gain Control allows you to dial in the perfect amount of classic boost or overdrive
•  Master Level Control provides a variable range of signal boost up to +20db
•  Tone Control balances the amount of high frequencies
•  On/Off Status LED
•  9V Battery Powered or optional AC Powered via External Power Jack Input
•  Input & Output Jacks (Nominal Input -20 db)

Specifications:

Dimensions (W/D/H): 2.87" x 4.77" x 2.28"
Weight: 0.731lbs (332g) with battery, 0.631lbs (287g) without battery
True Bypass Switching
Battery Type: 9VDC (one)
Power Consumption (Current Draw): 9VDC/15mA
AC Adapter (Optional): Power Jack 2.1mm x 5.5mm, 9VDC with Negative Center (Regulated Recommended)
Input Impedance: 1M Ohm (500k Ohm minimum)
Output Impedance: 10k Ohm

Link to Manual: http://www.mesaboogie.com/manuals/070502-gridSlammer_121026.pdf
