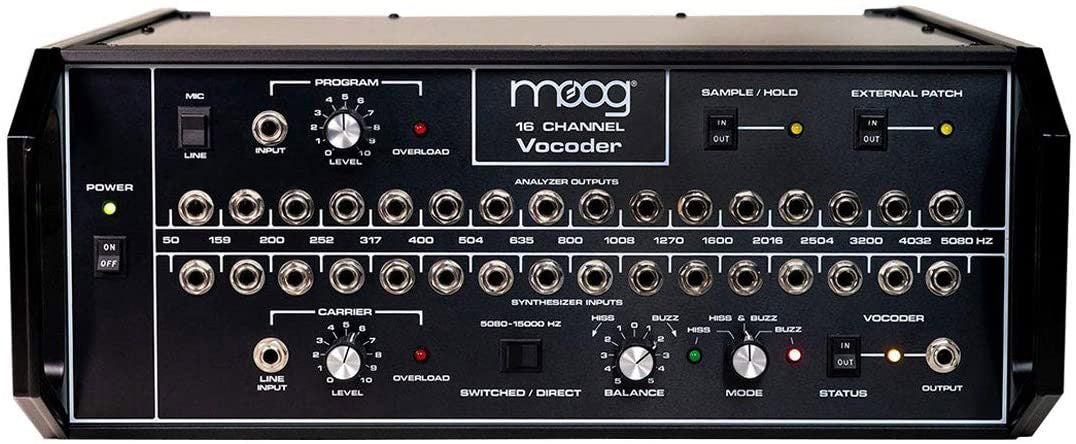

Moog Vocoder, 16 Channel

Availability: Sorry, this item is out of stock.


$ 4,599.00


The Moog 16 Chanel Vocoder is shipping now!

The Moog Factory in Asheville, NC has resumed production of the highly sought-after Moog 16 Channel Vocoder, an instrument which continuously analyzes the timbral characteristics of one sound (Program) and impresses these timbral characteristics upon a second signal (Carrier). Originally introduced in 1978, this model has been used to transmute vocals, transform synthesizers, and electronically encode sound for over 40 years. Moog Music has gone to great lengths to ensure that this distinct electronic voice carries on. Derived from the original vintage schematic, the Moog 16 Channel Vocoder’s analog voice circuits are hand-soldered at the employee-owned Moog Factory in Asheville, NC to preserve that classic 1978 sound. Updated mechanical connectors and a modern power supply improve reliability and long-term serviceability while ensuring that the analog soul of this instrument—and its unique character and idiosyncrasies—remains unchanged!

Features & Specs:

  • Number of Channels: 16
  • Inputs: 1 x 1/4" (mic/line program), 1 x 1/4" (line carrier), 16 x 1/4" (synth filter band CV)
  • Outputs: 16 x 1/4" (analyzer filter band CV), 1 x 1/4" (vocoder out)
  • Other I/O: 1 x 1/4" (sample and hold switch), 1 x 1/4" (patch select switch), 1 x 1/4" (bypass switch)
  • Power Supply: 5-pin 12V DC power supply (included)
  • H- 7", D-15.31", 17.34"
  • Weight:17.5 lbs
