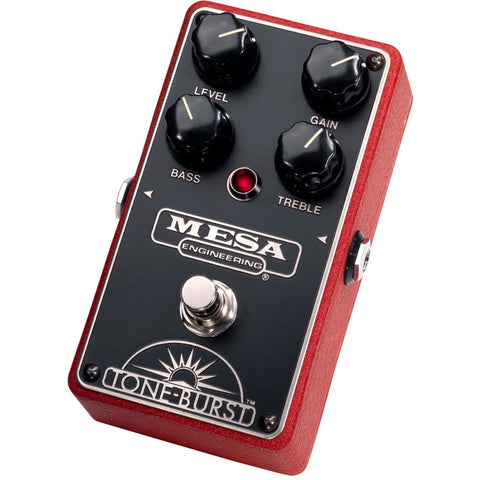

Mesa Boogie Tone Burst Boost Pedal

Availability: On Order, In Stock Soon!

Mesa Boogie

$ 179.00

You may want these related items:
  • DESCRIPTION
The Mesa TONE BURST Pedal is a transparent boost, with mild overdrive capability.

The TONE-BURST Boost/Overdrive offers a virtually transparent gain range usually associated with "clean" boost pedals. However, the TONE-BURST has enough gain to boost your guitar to the threshold of clip and slightly beyond, making it far more useful for a variety of applications. It's incredibly powerful for adding boost, drive and/or EQ to any guitar and amp combination. Whether using it as a utility to boost the output of single coils to match a humbucker or as a subtle overdrive when a standard overdrive may be too much, the TONE-BURST is an incredibly useful and expressive pedal that makes the best things sound even better!

  • Custom Designed AND Hand-Built in Petaluma, California, USA
  • True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss
  • Gain Control allows you to dial in the perfect amount of clean boost or mild overdrive
  • Master Level Control provides a variable range of signal boost up to +20db
  • Bass & Treble Controls provide +/- 12db of EQ boost or cut for exceptional tone shaping
  • On/Off Status LED
  • 9V Battery Powered or optional AC Powered via External Power Jack Input
  • Input & Output Jacks (Nominal Input -20 db)

Specifications:

Dimensions (W/D/H): 2.87" x 4.77" x 2.28" (73mm x 122mm x 58mm)
Weight: 0.802lbs (364g) with battery, 0.702lbs (319g) without battery
True Bypass Switching
Battery Type: 9VDC (one)
Power Consumption (Current Draw): 9VDC/15mA
AC Adapter (Optional): Power Jack 2.1mm x 5.5mm, 9VDC with Negative Center (Regulated Recommended)
Input Impedance: 2M Ohm (500k Ohm minimum)
Output Impedance: 10k Ohm

Link to Manual: http://www.mesaboogie.com/manuals/070501-toneBurst_121026.pdf
