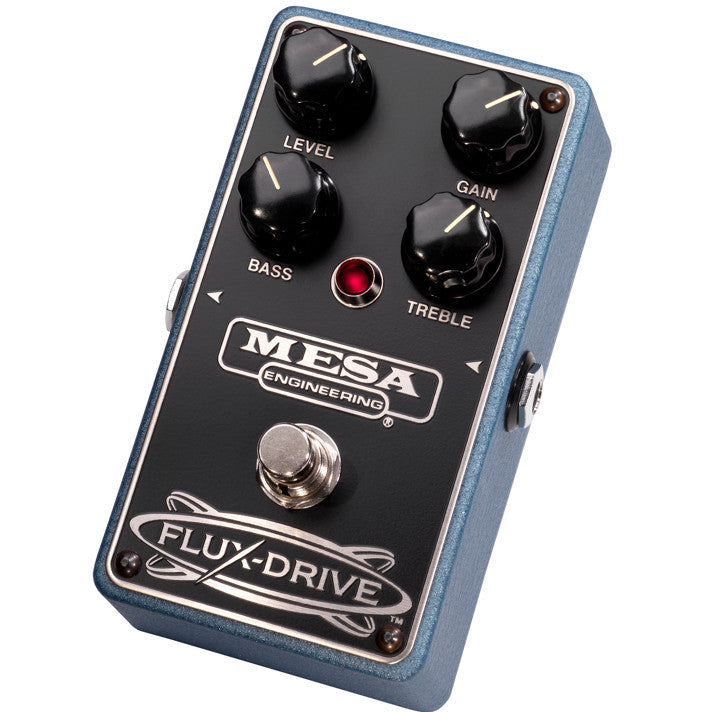

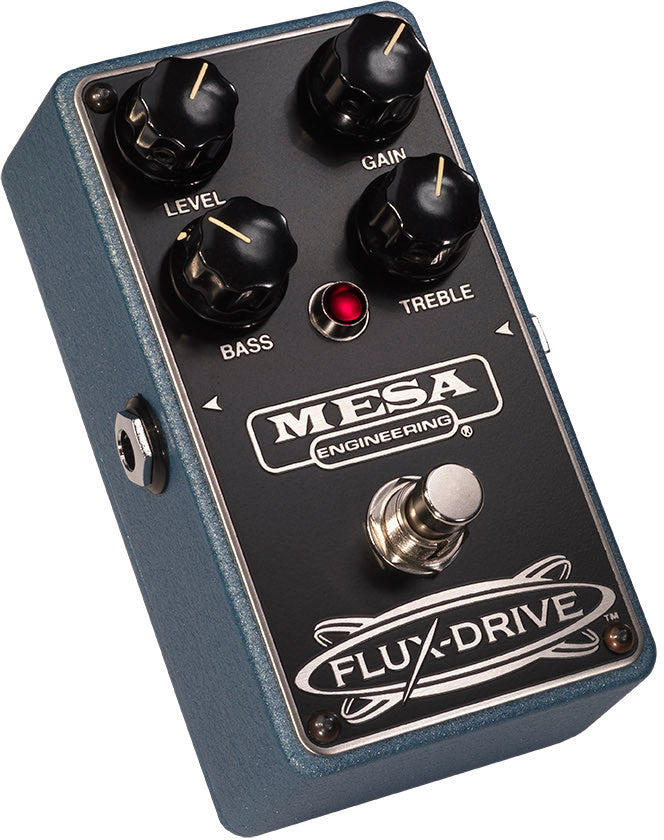

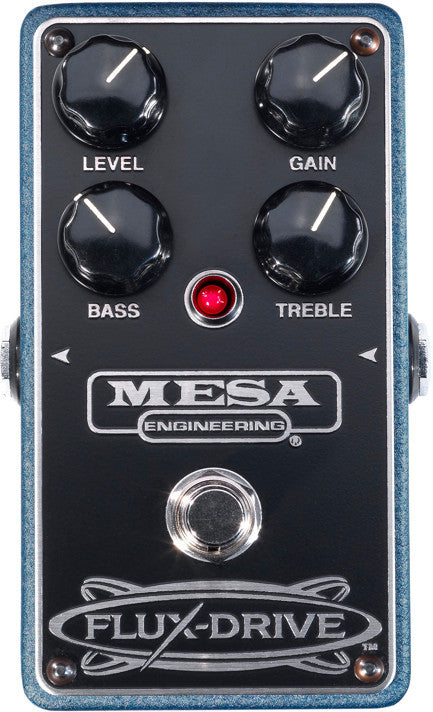

Mesa Boogie Flux Drive Overdrive / Gain Pedal

Availability: Sorry, this item is out of stock.

Mesa Boogie

$ 179.00

You may want these related items:
  • DESCRIPTION
The Mesa FLUX DRIVE is a vintage inspired overdrive with fat, expressive gain.

The FLUX-DRIVE Overdrive is an overdrive for those who want more of all the best things from an overdrive! It has more liquid gain and enhanced sustain that easily feeds into rich harmonic overtones making it incredibly addictive and inspiring to play, especially to enhance a crunch or higher gain amp channel! It also offers a more complete tone-shaping network with individual Treble and Bass controls. This architecture makes the FLUX-DRIVE a more complete preamp with added versatility beyond that of most overdrive pedals.

  • Custom Designed AND Hand-Built in Petaluma, California, USA
  • True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss
  • Gain Control allows you to dial in the perfect amount of vocal-overdrive, dynamic to sustaining
  • Master Level Control provides a variable range of signal boost up to +20db
  • Bass & Treble Controls provide +/- 12db of EQ boost or cut for exceptional tone shaping
  • On/Off Status LED
  • 9V Battery Powered or optional AC Powered via External Power Jack Input
  • Input & Output Jacks (Nominal Input -20 db)

Specifications:


Dimensions (W/D/H): 2.87" x 4.77" x 2.28"
True Bypass Switching
Battery Type: 9VDC (one)
Power Consumption (Current Draw): 9VDC/15mA
AC Adapter (Optional): Power Jack 2.1mm x 5.5mm, 9VDC with Negative Center (Regulated Recommended)
Input Impedance: 1M Ohm (500k Ohm minimum)
Output Impedance: 10k Ohm

Link to Manual: http://www.mesaboogie.com/manuals/070503-fluxDrive_121026.pdf
