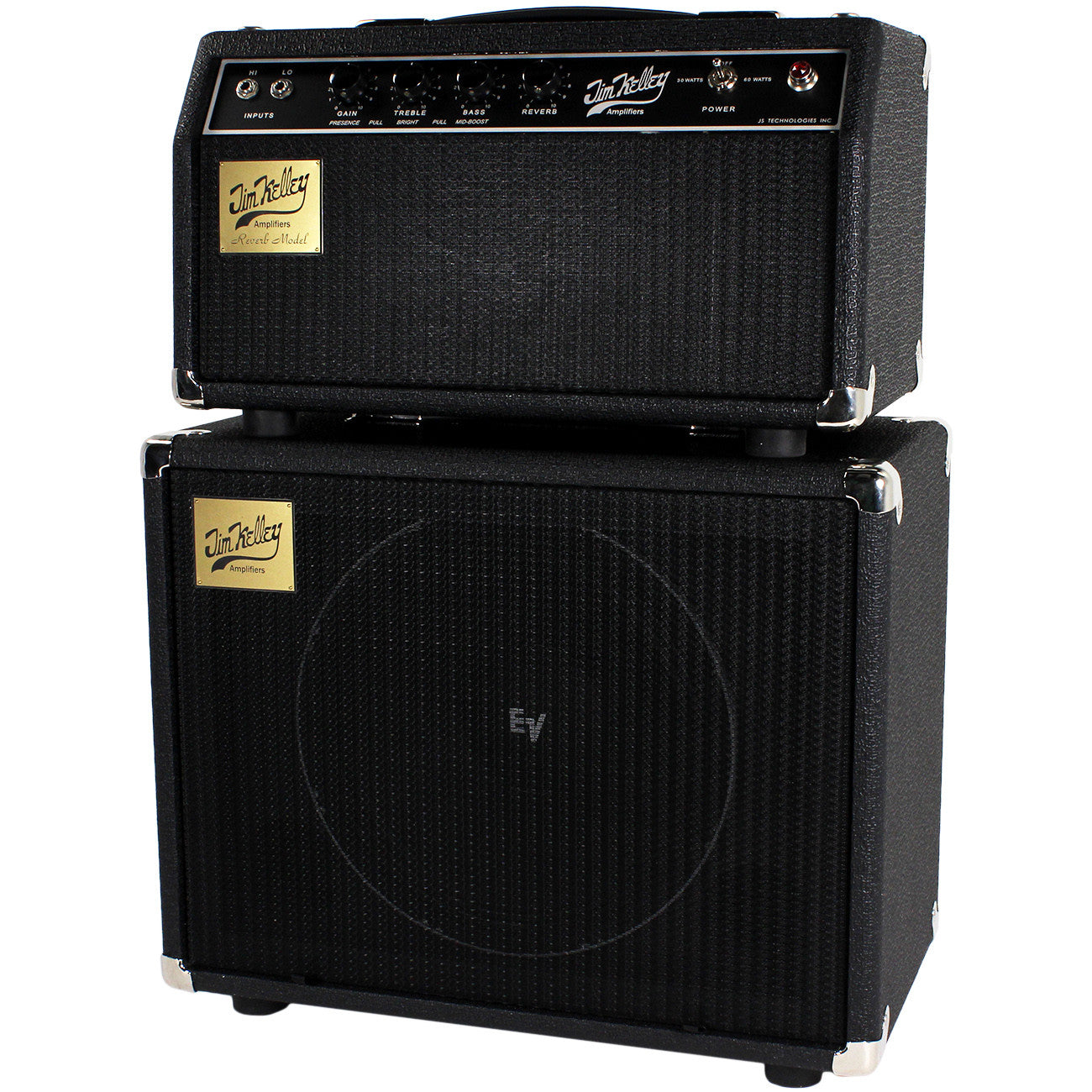

Jim Kelley Single-Channel Amp Head & Cab
- DESCRIPTION
The Jim Kelley Single-Channel Amplifier is in stock and available right now!
The Jim Kelley Single-Channel amplifier is designed to retain your guitars natural tonal characteristics in a 60 watt all-tube package while still delivering a broad range of punchy, high powered clean and smooth dynamic overdrive. Featuring a versatile pre-amp / power-amp, active shelving tone controls, reverb, and the ability to switch to half power, thie Jim Kelley Single-Channel is sure to deliver any tone you need and more.

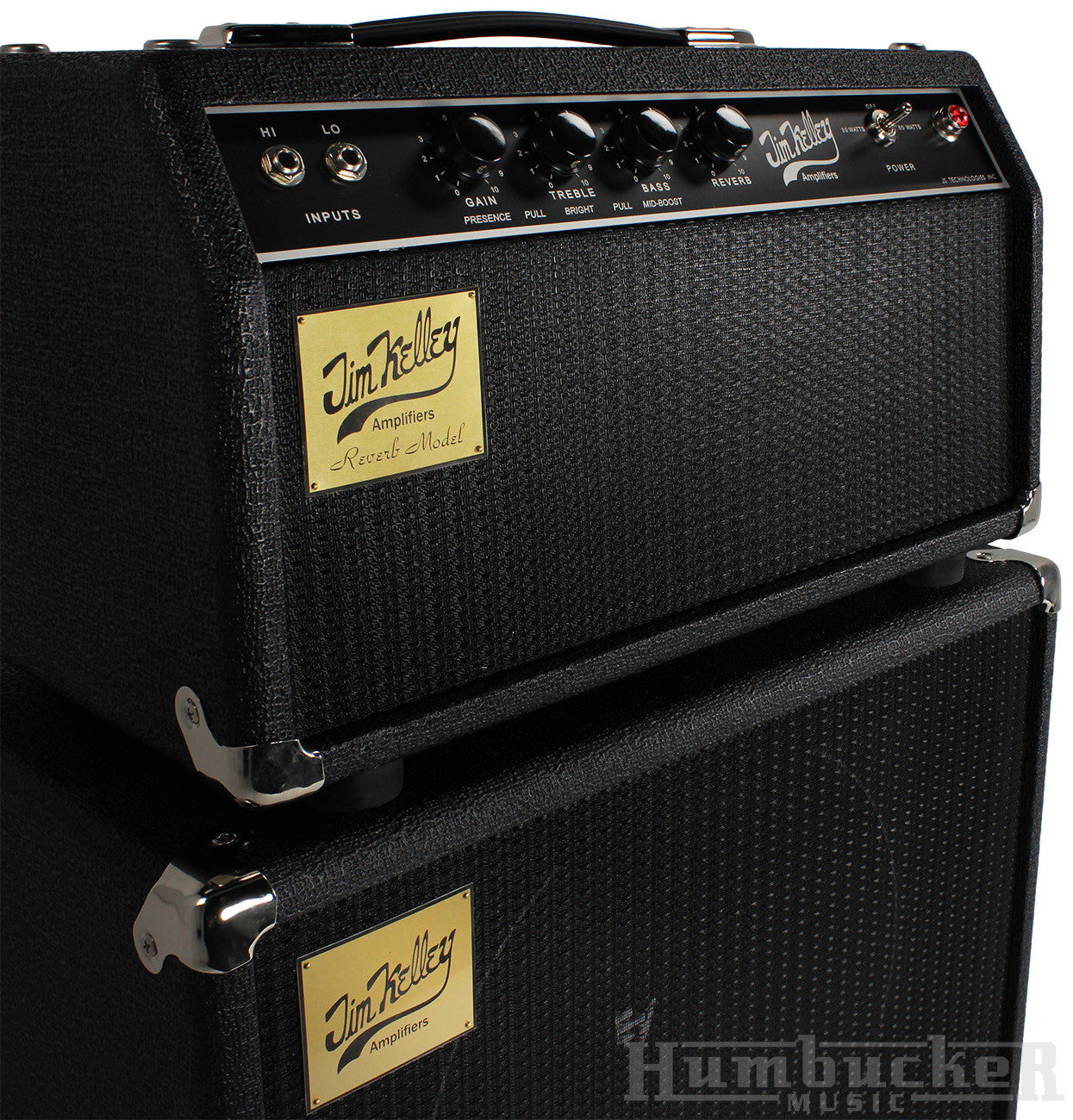

Front Panel:
Power Select Switch:
30 Watts for operatation at half power
OFF: Power is switched off
60 Watts for operatation at full power
Gain:
Acts as an overdrive and a volume control. Adds harmonic sustain, richness and depth when at higher gain settings. (Pulling activates Presence)
Treble:
Adjusts the boost and cut of treble frequencies. (Pulling activates Bright)
Bass:
Adjusts the boost and cut of bass frequencies. (Pulling activates Mid-Boost)
Reverb:
Adjusts the amount of reverb introduced into the signal.
Presence (Pull Gain):
Located on the Gain control, this adds high frequencies by alternating the power section's negative feedback.
Bright (Pull Treble):
Located on the Treble control, this provides an additional boost of treble for a glassy edge.
Mid-Boost (Pull Bass):
Located on the Bass control, this adds thinkness and sustain for "fattening up" lead tones.
Inputs:
HI input is for guitars that use passive or high impedance pickups and the LO input is for guitars with active or low impedance pickups.

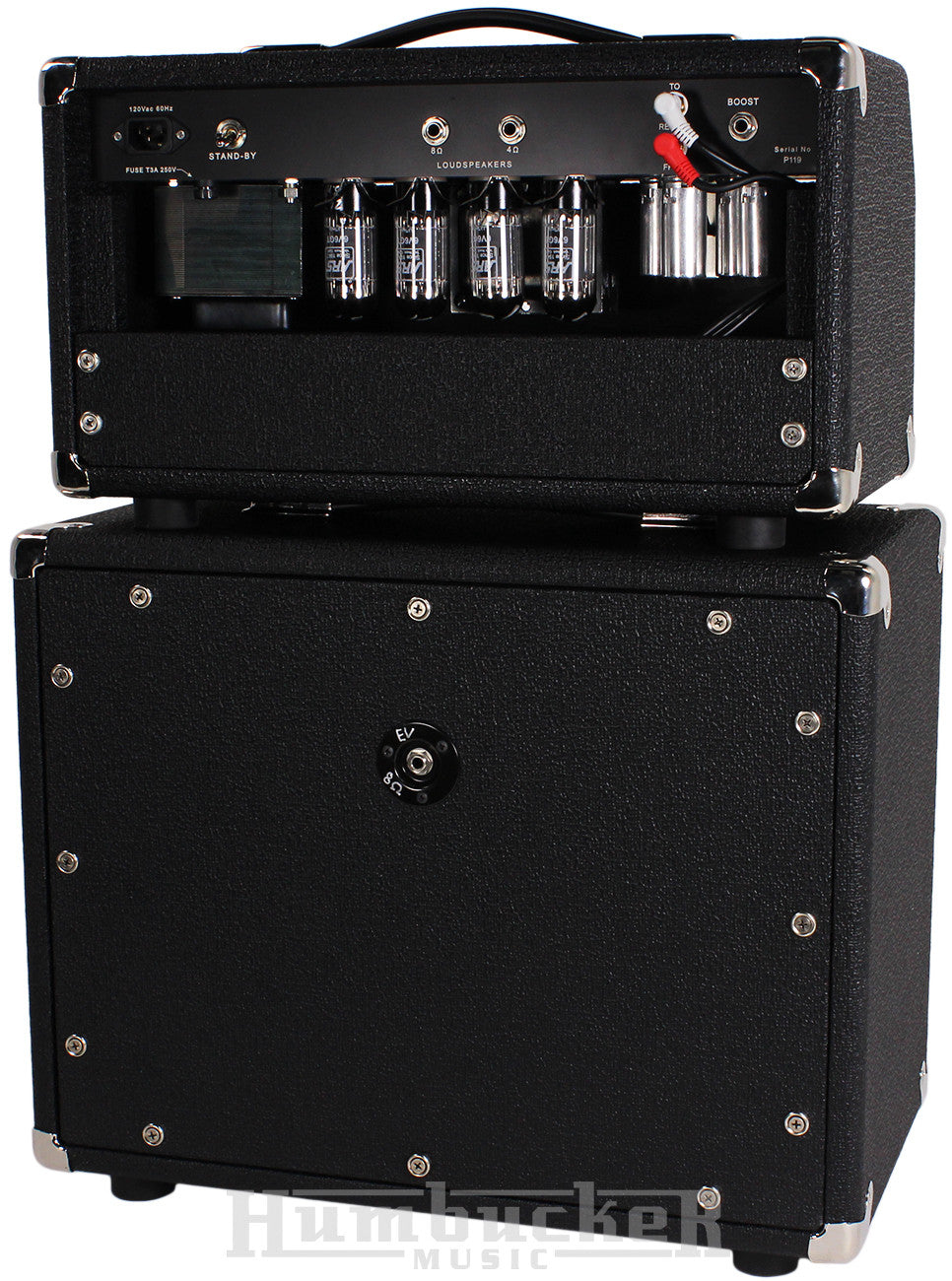

Rear Panel:
Boost:
Footswitchable Post-EQ boost in gain to the output section to increase saturation while keeping the pre-amp clean and punchy.
Speaker Out:
4 and 8 ohm outputs.
Standby Switch:
Standard function standby switch.
Tubes:
Power Tubes: 6V6 (x4)
Preamp Tubes: 12AX7 (x3), 12AT7 (x1)
