Dr. Z Stang Ray Amplifier (Discontinued)

Availability: SORRY, ITEM IS DISCONTINUED.

Dr. Z

You may want these related items:
  • DESCRIPTION

The Dr. Z Stang Ray is the result of Dr. Z's second collaboration with superstar country guitarist Brad Paisley. After the success of their first partnership, the Prescription Extra Strength, Dr.Z and Brad Paisley wanted to develop an amplifier that offered an additional pallet of tones to work alongside the Prescription ES.

Using the classic setup of a quartet of el84's biased close to true Class A at 30 watts, the new Stang Ray tips its hat to classic British tones, but like all Dr.Z amps, has its own unique voice. The preamp uses an EF-86, and it has a 12AX7 phase inverter. Tone shaping is accomplished with Volume, Tone, and Cut controls, giving you the ability to dial up a warm tone, but with sweet 3k range brilliance for beautiful upper treble and nice low-midrange control. The output transformer was designed by Ken Fischer (Trainwreck), who also worked with Dr.Z on the Airbrake.

Power Output: 30 Watts
Output Tubes: 4- EL84
Preamp Tubes: 1-EF86, 1-12AX7
Rectifier: 1-GZ34
Controls: Volume, Tone, Cut

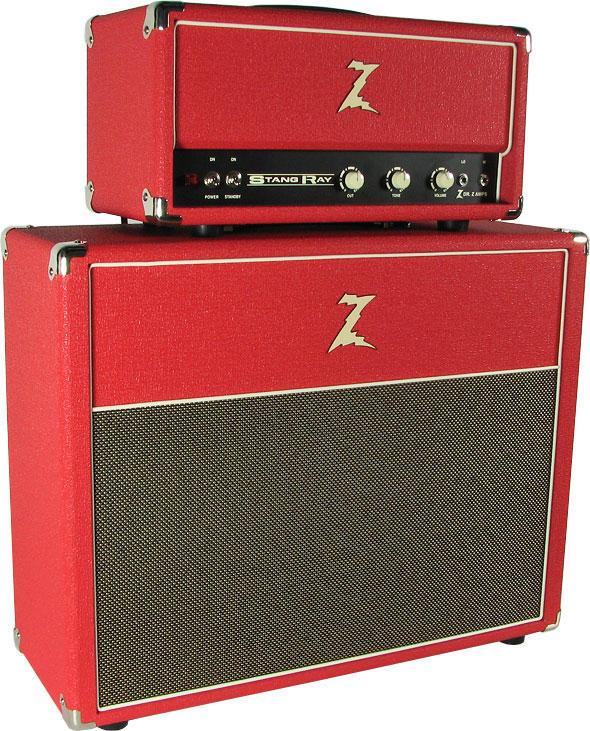

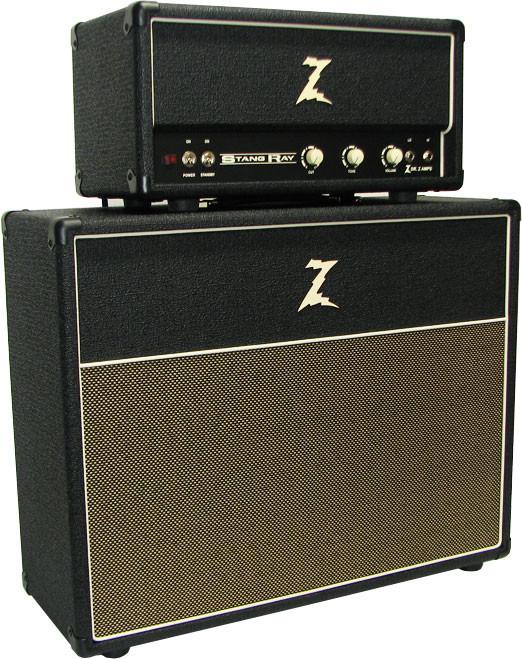

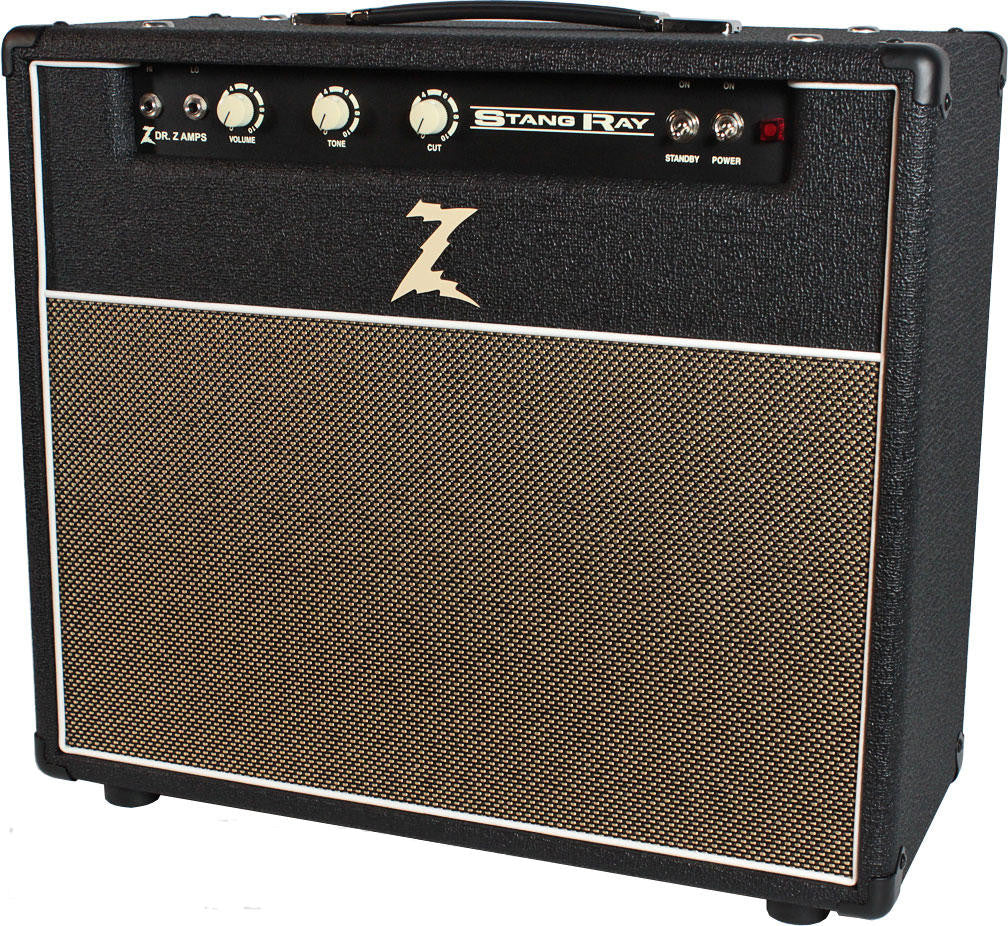

Configuration : Head, 1x12 Combo, 2x12 Combo
