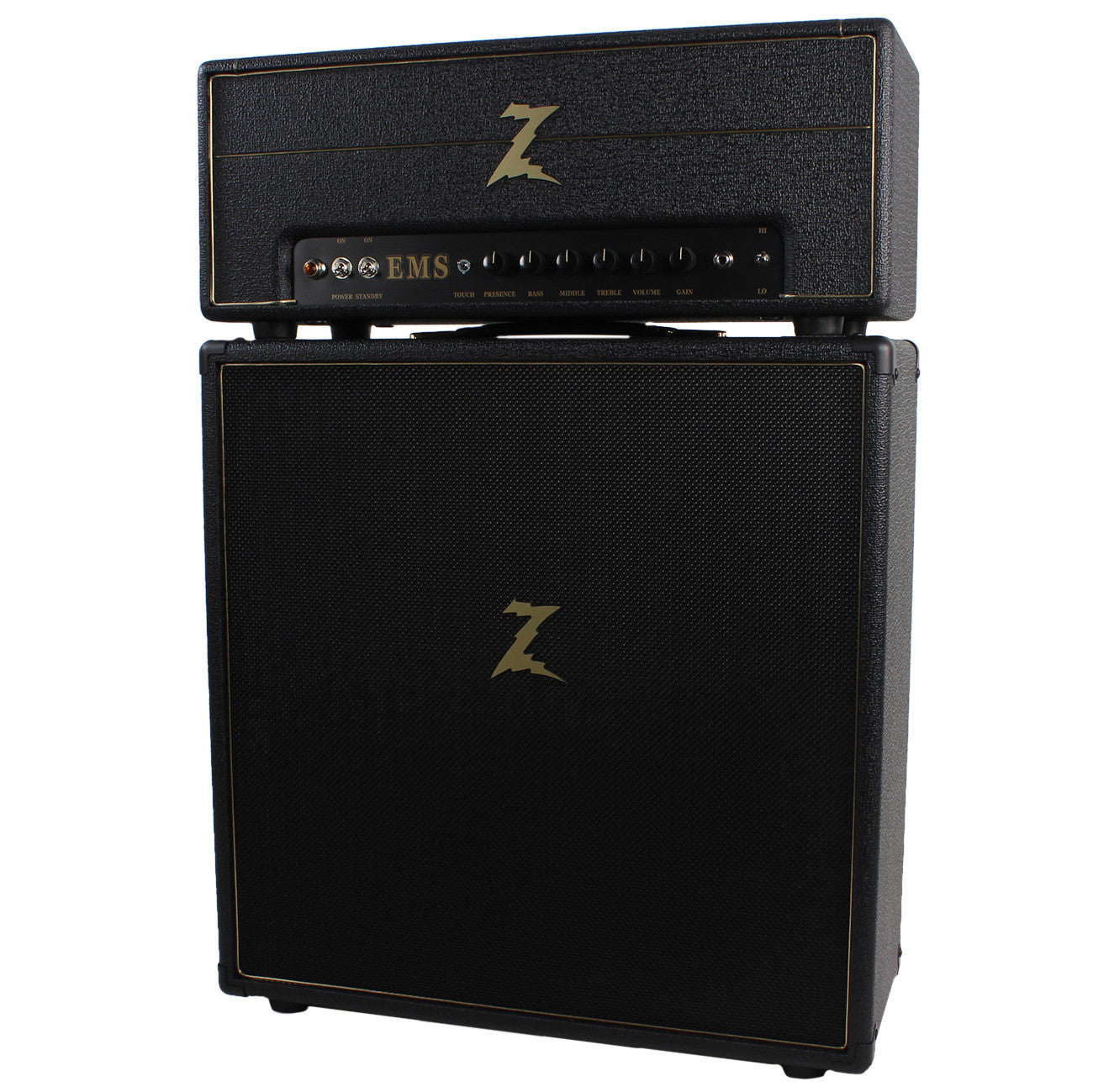

Dr. Z EMS Head and Matching 2x12 Cab Set


Dr. Z

You may want these related items:

Get your Dr. Z EMS Head at Humbucker Music, the largest Dr. Z dealer in the world with the biggest inventory for sale!

With the Dr. Z EMS, the goal was to produce the essential sounds of 3 generations of classic Marshall amplifiers. Starting with the mid-60s JTM 50 variant, they combined a dual EL34 power section with a tube rectified power supply, available by selecting “tube” via the rectifier switch on the back panel. Along with the tube rectifier, setting the EMS sensitivity switch to Low and Touch response switch to the down position, this combination will produce the bloom and feel of the early American tweed amps but with the Marshall charm of EL34 output tubes.

Flashing forward to the 70s, the essence of the "small box" JMP amp is available in the EMS by selecting the “solid state” rectifier via the back panel, selecting “low” sensitivity, and using the “Touch” switch to match the amplifier with your choice of guitar. Using the same circuit topography of the JTM series, only with a more powerful solid state power supply, this sound is noted for its lightning quick response and cutting "kerrang" in the upper midrange.

Lastly, the EMS incorporates the cascaded gain stage design found in the 80s JCM series. By using the “high” sensitivity switch on the front panel, and selecting solid state rectification, hard rock and classic metal tones with tight bass response and singing gain will come screaming out of your guitar. We massaged the circuit to remove some of the annoying, persistent high-treble this era of amplifier has been maligned for and boosted the gain a bit further so that more “modern” drive tones are available higher on the gain knob.

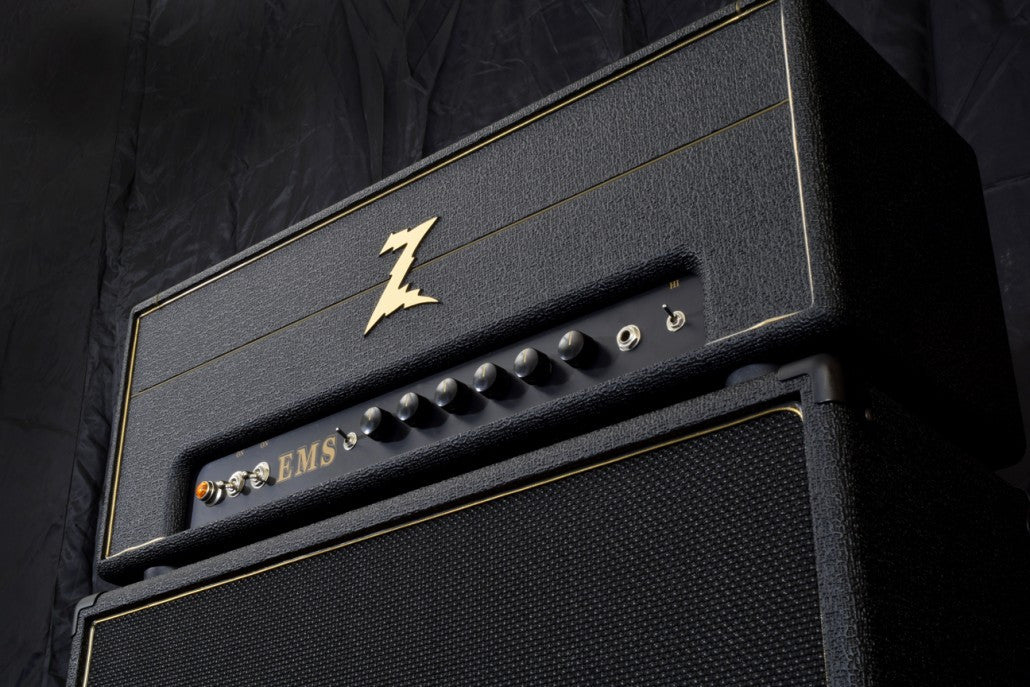

The EMS, like all Dr. Z amplifiers, is 100% hand-wired in Maple Heights, OH using select components throughout its stages and built on a custom rolled aluminum chassis. It has a precise copy of the Drake 784-139 50-watt output transformer for authentic British crunch. For a perfect match to the EMS small box head, Dr. Z pairs the 2x12 Backline cabinet loaded with a Celestion Creamback 65M speaker and a Celestion G12 H30 70th Anniversary speaker wired in series for 16 ohm. This cab is a great aesthetic match to the EMS head, with black grill cloth and gold piping, and can be operated in closed-back or open-back configuration.

Head Specs:

Power Output: 50 Watts
Power Tubes: 2 x EL34
Preamp Tubes: 3 x 12AX7

Rectifier: Switchable 5U4GB and Solid State
Controls: Gain, Volume Treble, Middle, Bass, Presence

Switches: Hi/Lo sensitivity switch, "Touch" sensitivity switch
Speaker Outs: 4, 8, and 16 ohms via rotary knob
Dimensions: 23 5/8" Wide x 9 5/8" High x 9 1/4" Deep
Weight: 30 lbs

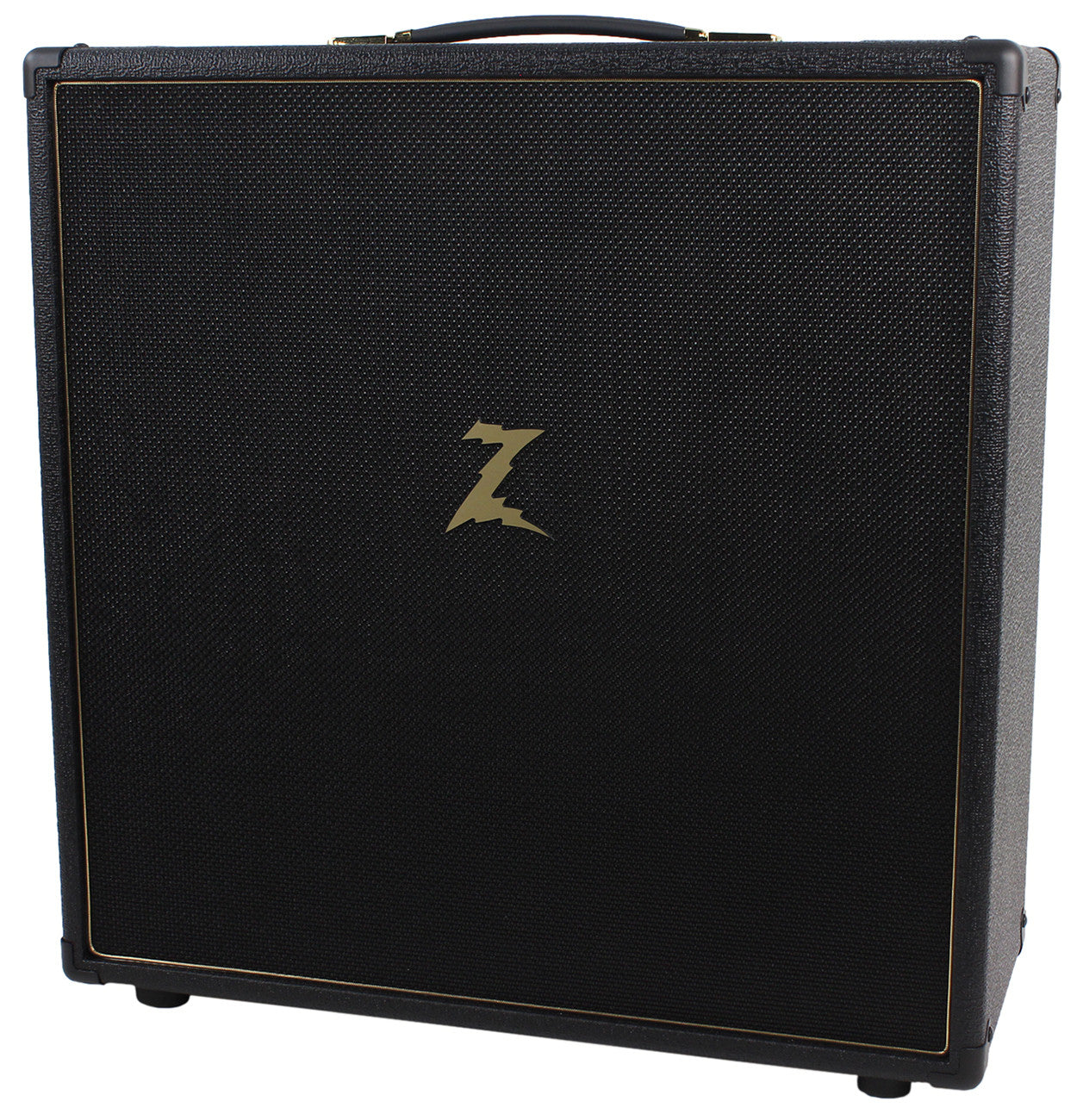

Cab Specs:

Speakers: Celestion G12M Creamback and Celestion G12H30
Dimensions: 24" Wide x 24" High x 10" Deep
Weight: 53 lbs
