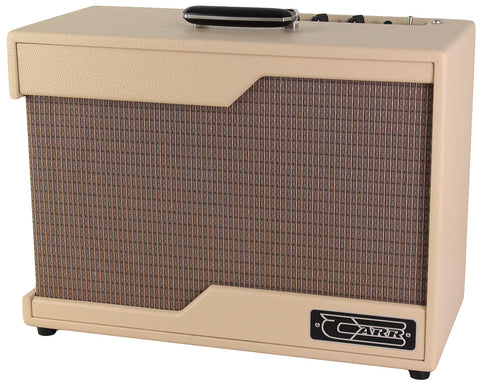

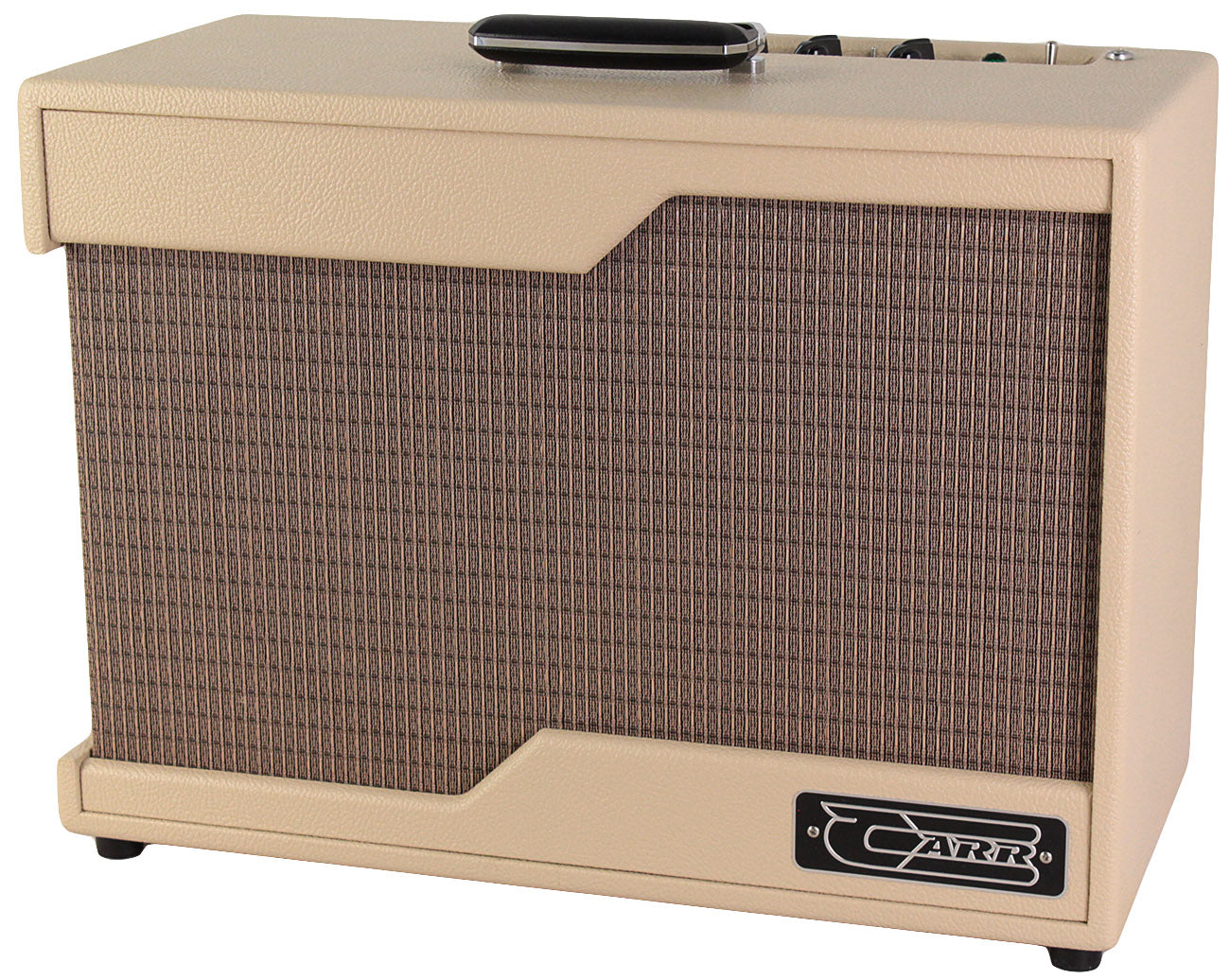

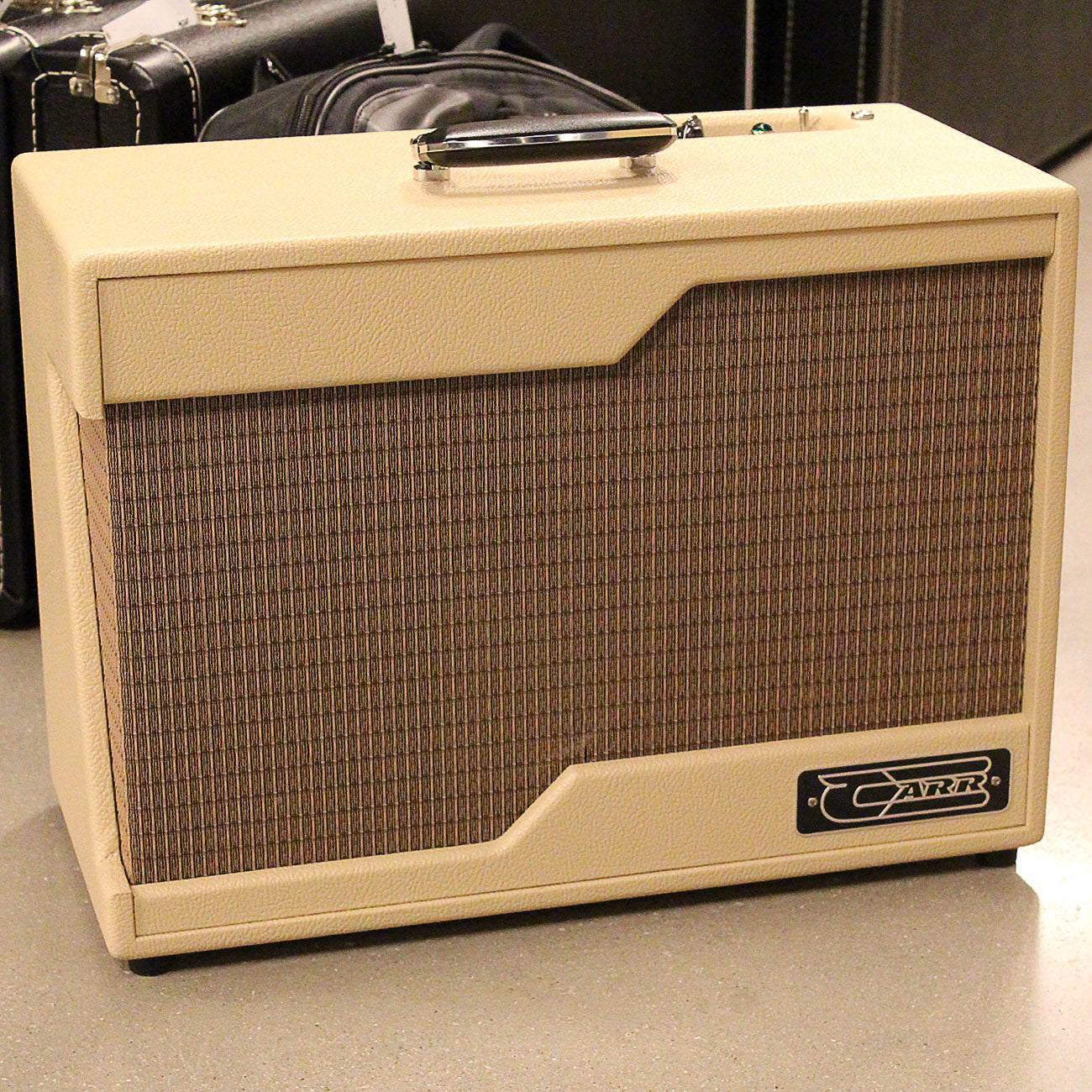

Carr Raleigh 1x12 Combo Amp, Cream

Carr

$ 1,750.00

You may want these related items:
  • DESCRIPTION
  • VIDEOS
The Carr Raleigh combo amplifier is a versatile practice / studio amp designed to deliver both pristine clean and heavily overdriven tones at usable volumes. It's tones range from glassy 60s blackface tones to juicy, sustained overdrive.

Aesthetically, the Raleigh pays homage to the cool stylings of practice amps from the 50s and early 60s.

Producing 4 watts, with just three knobs on the panel, the Raleigh’s secret weapon lies in a split personality that delivers everything from glassy, spanky ’60s American blackface tones to juicy, sustaining Brit-voiced overdrive, all at the flick of a switch. Fire it up for low-decibel apartment jams or mic it for the easiest clean-to-scream studio tones you’ve ever tracked, all with the full, rich, dynamic sound and feel of a much bigger amp.

The Raleigh’s aural opulence comes courtesy of a single EL84 power tube in a pure Class-A output stage, driven by two 12AX7 preamp tubes in the front end. The simple Volume and Tone controls keep the signal pure for optimal clarity and touch sensitivity, while a flick of the Clean/Overdrive toggle ramps up the gain and brings in the Master control for saturated lead tones and singing sustain, right down to hushed neighbor-friendly volume levels.

Despite its simplicity, the Raleigh is nevertheless built using Carr’s acclaimed point-to-point, hand-wired circuit construction and a hand-crafted, thin wall Baltic Birch cabinet that brings this stylishly retro combo in at a mere 21 lbs for the 1x10, and 28.5 lbs for the 1x12.

Circuit Specifications:
Power Output:  4 Watts
Output Tubes:  1 x EL84
Preamp Tubes:  2 x 12AX7
Controls:  Volume, Tone, Master
Switches:  Clean / Overdrive
Construction:  Hand wired point-to-point in the USA
Components:  Custom USA-made transformers, Solen Fast Cap Film Power Supply, Mallory signal capacitors, Analysis Plus speaker cables, and more

1x10 Model Specs:
Speaker: Eminence Lil' Buddy Hemp Cone - 8 Ohms
Dimensions 16" Wide  x  11 7/8" High  x  8 1/4" Depth
Weight: 21 lbs

1x12 Model Specs:
Speaker: Celestion M65 Creamback - 8 Ohms
Dimensions 19.5" Wide  x  14.5" High  x  9.25" Depth
Weight: 28.5 lbs


Carr Raleigh Owners Manual - 732 kb PDF Format
