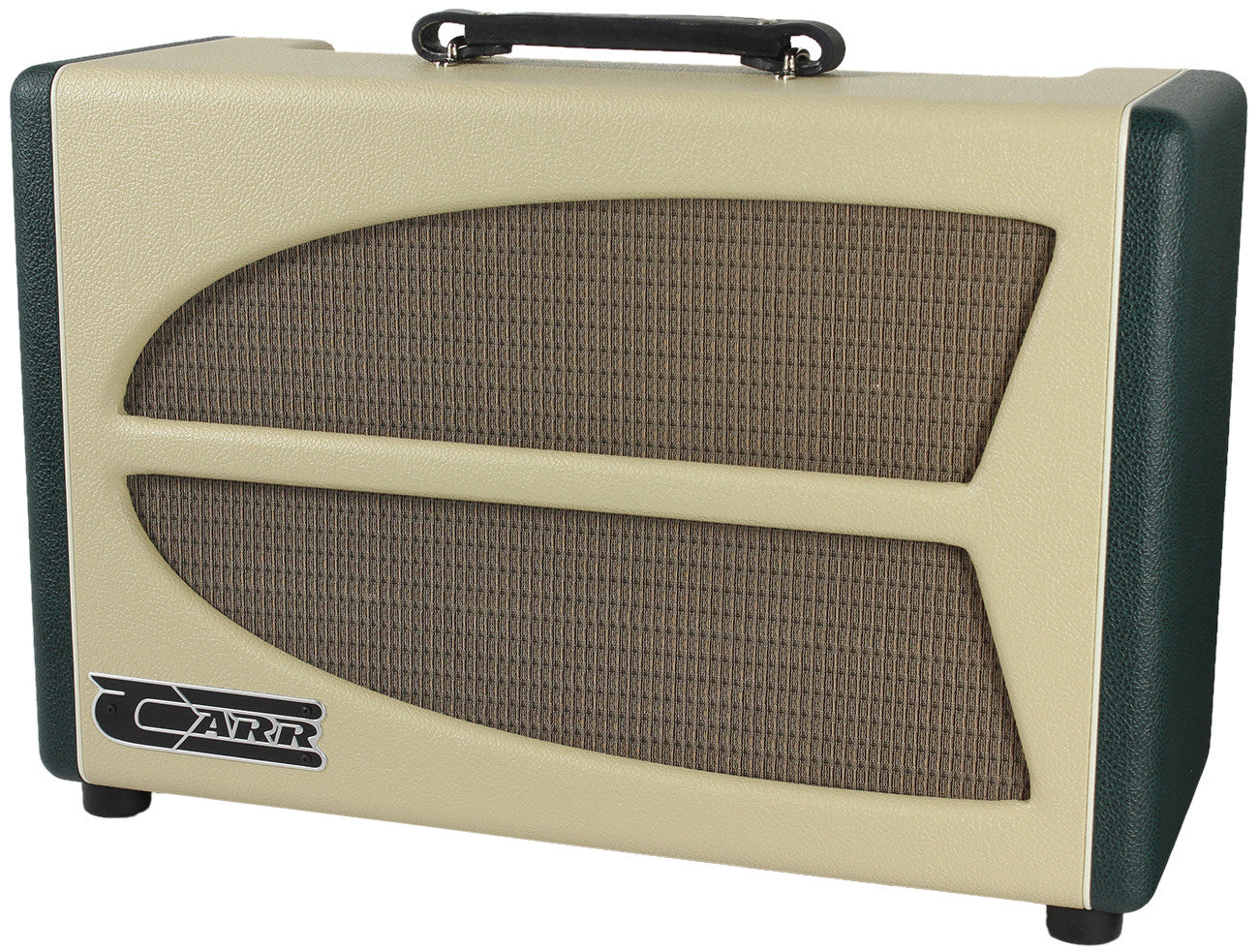

Carr Lincoln 1x12 Combo Amp - Cream / Green
Note: Carr Amplification has discontinued the Lincoln.
The Lincoln was a two channel amp featuring two EL84's in the power stage delivering 18 watts (switchable to 6 watts) of British tone.
Channel One ranges from "Voxy Top-Boostish" type cleans to a slight overdrive while Channel Two delivered heavy, creamy, crunchy overdrive similar to a master volume Plexi. Each channel featured a High/Low switch that boosts the gain for that channel. There's also has a nifty 18/6 switch that takes the 18 watt output and drops it to a nice, manageable 6 watts.

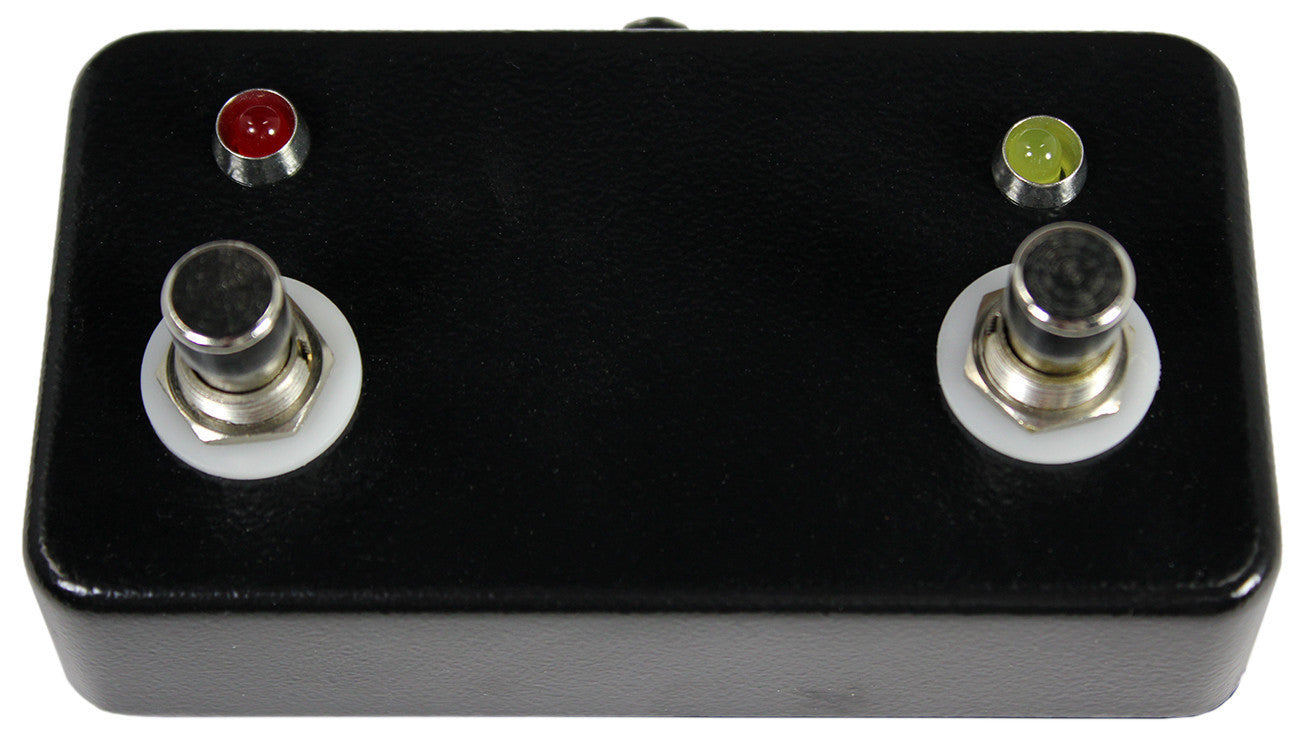

The 2 button footswitch selects the channel and the high/low gain for channel 2.
Configuration: 1x12 Combo (with Celestion Creamback M-65)
Power: 18/6 Watts (switchable)
Tubes: 4 x 12AX7 (preamp) 2 x EL-84 (power amp)

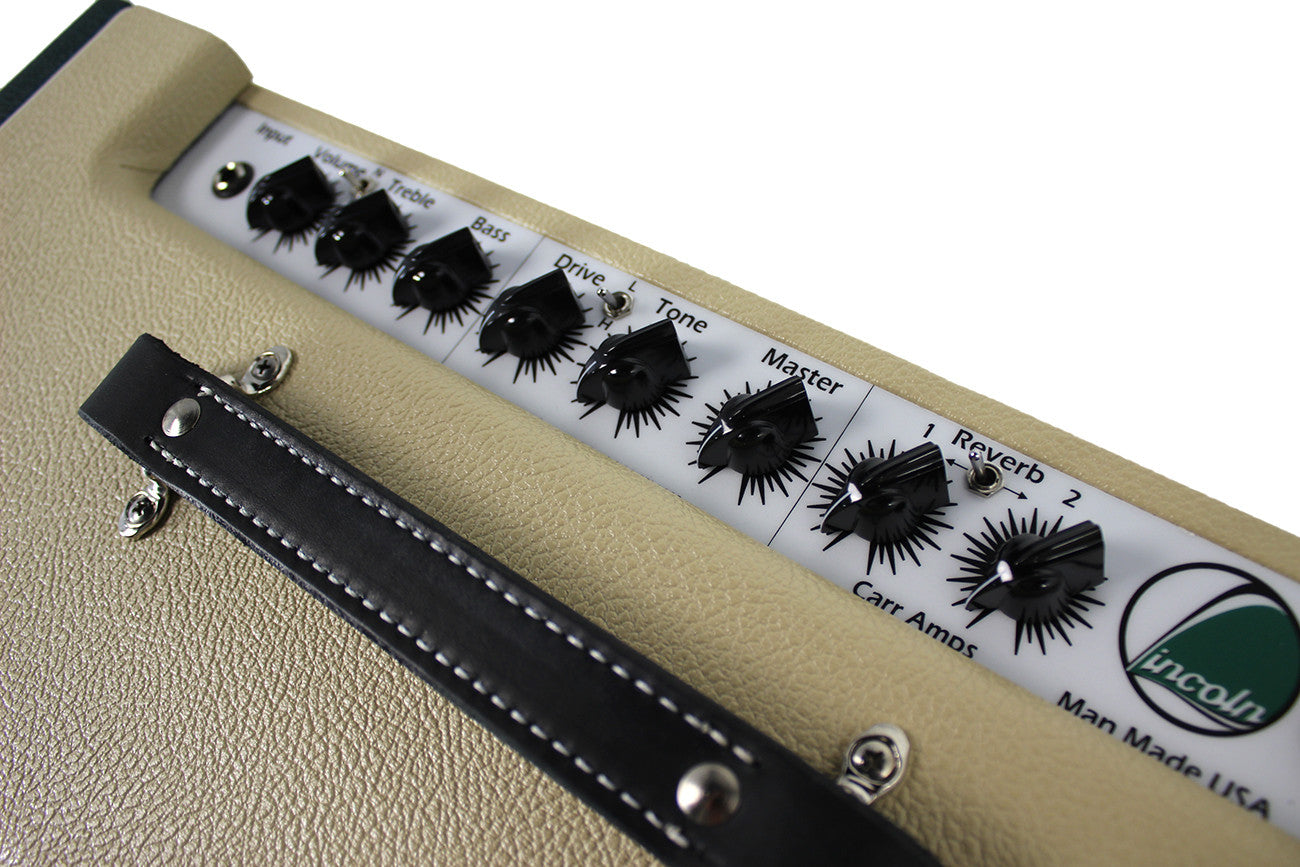

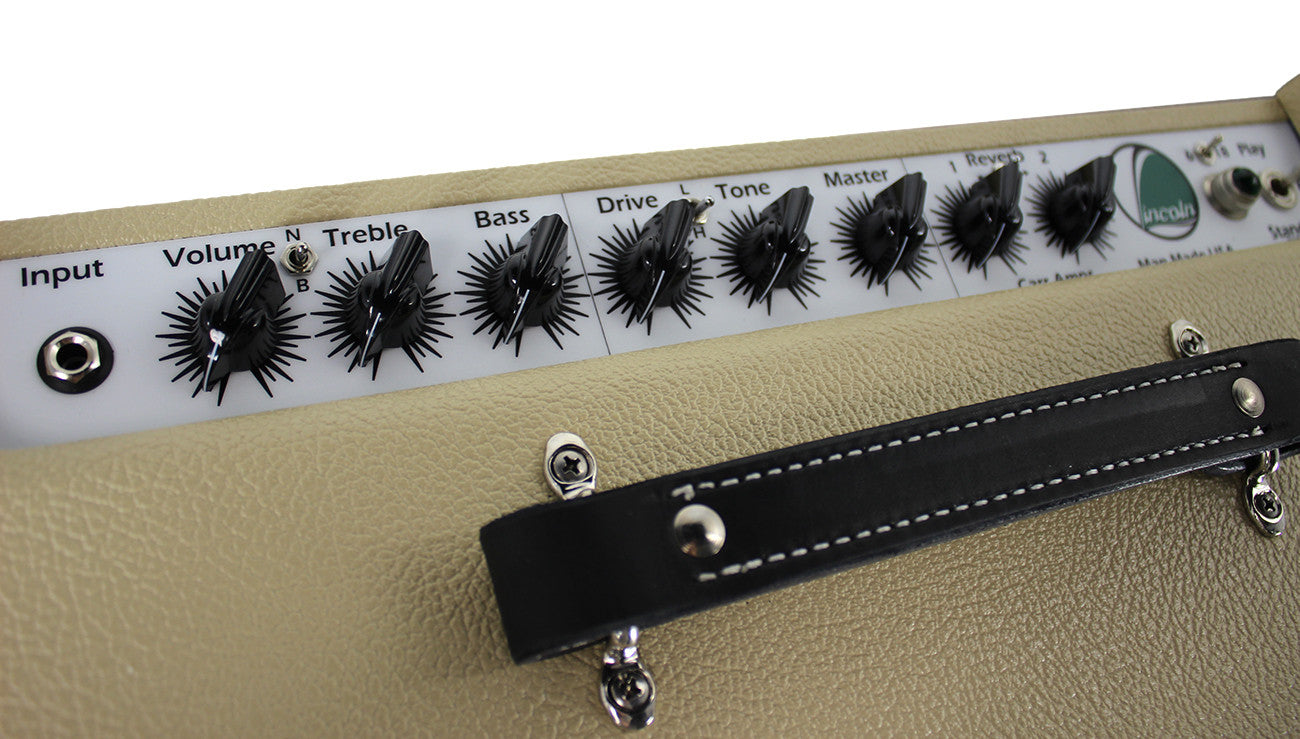

Controls: Volume, Normal/Bright, Treble, Bass, Reverb - Drive, Hi/Low, Tone, Master, Reverb, 18/6 Watts
Switches: Normal/Bright, Hi/Low, 18/6 Watts
Footswitch: Yes, two button - channel + OD channal Hi/Low
Reverb: Yes, tube driven with both channels having individual controls
FX Loop: No
Dimensions: 24" Wide x 16" High x 9" Deep
Weight: 40 lbs
