American Exotic Guitars TX-HS, Quilt Maple, Walnut, Fireburst

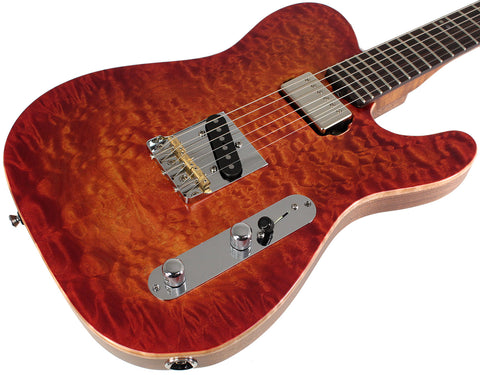

The American Exotic TX-HS is a highly modified Tele body based instrument with several refinements.
This TX-HS features a Black Walnut body, Quilted Maple top, and a one piece Roasted Flamed Maple neck with a Modern C neck carve.
The oil finish used by Jason is a unique blend of linseed and other natural oils. It resists water damage and will not cloud, yellow, or crack with age.
For the pickups, we're using a handwound 4 conductor Lollar Imperial Humbucker in the neck with Volume/Tone push/pull pot for tapping the neck, and a Lollar handwound Tele Special bridge.
Serial Number: 220725
Weight: 8 lbs 5 oz
Neck: One Piece Roasted Flame Maple, Modern C Neck Carve
Double Action Truss Rod w/spoke wheel adjustment
Fretboard: Macassar Ebony with Abalone Dots at 12th fret
Fretboard Radius: 12"
Frets: 22 Wide Jumbo, .110 Wide, .053 Crown
Scale: 25.5" Scale
Nut Width: 1.75 inches Hand Cut Bone
Side Dots: White
Neck Pickup: Lollar Handwound Imperial Humbucker Neck
Bridge Pickup: Lollar Handwound Tele Special
Bridge: Wilkinson Brass Compensated 3 Saddle
Tuners: Gotoh Mini-Keys
Electronics: 250K Linear Pots, Sprague Orange Drop .022uF (223K) capacitor, 3 Way Toggle
Volume and Tone push/pull pots for tapping neck humbucker
Strings: Fender: .10-.46 Nickel Wound
Finish: Natural, Rubbed Oil
