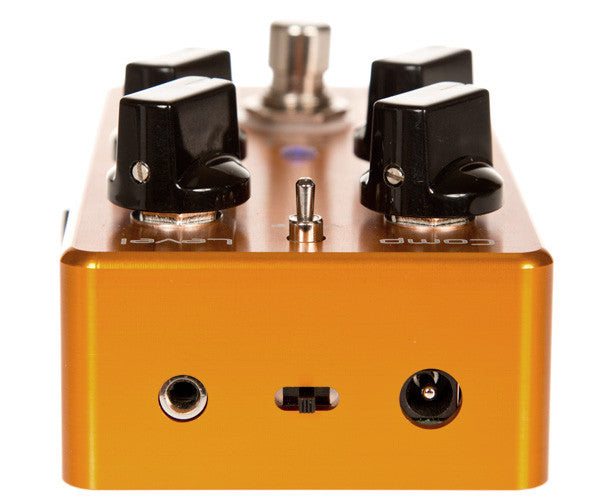

Suhr Koji Comp Compression Pedal

Availability: In Stock Now!

Suhr

$ 199.00
You may want these related items:
  • DESCRIPTION
  • VIDEOS
The new Suhr Koji Comp is a very versatile all-analog compressor, designed to offer a wealth of vintage and modern style compression effects without compromising your tone.

With a simple twist of the Mix control, or flick of Koji’s Voice switch, you can easily create a limitless range of compression effects. Whether you choose subtle, transparent compression for smoothing out your rhythms, or dial in warm and squishy tones to take you into R&B and Country territory -the Koji Comp is possibly the last compressor you will ever need.

OVERVIEW
The Koji Comp is an easy to use analog compressor designed to offer a wealth of popular stompbox and studio style compression effects. With a simple twist of the Mix control, or flick of Koji’s Voice switch, you can easily create a limitless range of compression effects. Whether you choose subtle, transparent compression for smoothing out your rhythms, or dial in warm and squishy tones to take you into R&B and Country territory - the Koji Comp might be the last compressor you will ever need.

CONTROLS

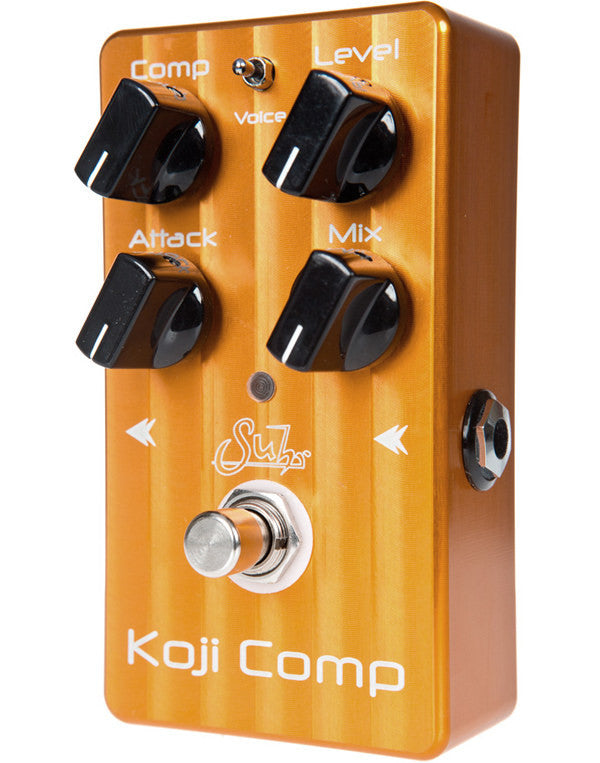

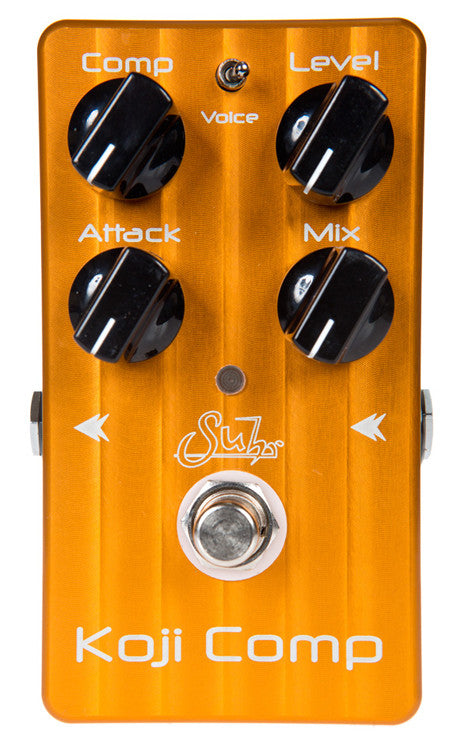

The Koji Comp features an easy to tweak control layout which includes: Compression, Level, Attack, Mix, and a three position Voice switch.

COMP (Compression):This control determines the amount of compression (gain reduction) applied to your signal path.
  • At lower settings, (0 - 2) this control produces a subtle, smoothing effect, ideal for the player looking to even out their dynamics without dramatically altering their tone.
  • At middle settings, (3 - 6) this control offers increased compression for a more percussive, dramatic response, favored by players seeking tones heard on classic R&B and Funk recordings of the 70’s and 80’s.
  • At higher settings (7 - 10), this control offers all of the classic squish that vintage stompboxes are known for... and more.

LEVEL: Adjusts the overall output level of the Koji Comp. Use this control to compensate for the amount of Compression/Gain Reduction applied to your signal path.

MULTI-FUNCTION LED
Gain Reduction Indicator: The LED indicator that displays the amount of Gain Reduction based on the ratio of your instrument’s signal and the level of compression in your signal.
Green - Minimal Gain Reduction
Orange - Moderate Gain Reduction
Red - Maximum Gain Reduction (This is not a bad thing)
On / Off Indicator: The LED indicator displays the on / off effect status.


SPECIFICATIONS:
Input Impedance: 1M ohm
Output Impedance: 600 ohm
Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm
Operating Voltage: 5V to 18V (nominal 9V)
Maximum Voltage: 20Vdc
Attack Time Range: 1ms-100ms
Gain Reduction Indicator: 3 Color LED
Reverse Battery Protection: yes
Over Voltage Protection: yes
Current Consumption: < 20mA
Estimated Battery Life: 40 – 50 hours of continuous use
Dimensions: 2.50" Width x 4.50" Depth x 1.25" Height
Weight: 0.75 pound
FxLink Connector: 1/8" mono jack
FxLink max Voltage: 3.3Vdc
Shield to Tip: Activate on/off
Whether you’re a working musician, studio rat, or playing large arenas the Koji Comp's rock solid aluminum enclosure and heavy duty footswitch ensures a lifetime of reliable performance.

Selectable Bypass Modes
The Koji Comp offers the following bypass modes:
True Hardwire Bypass (TBYP): A hard-wire bypass (via relay) removes the pedal from
the signal path. Use this setting in setups where there are a few pedals and relatively
short cables. (Default Setting)
Buffered Bypass (BUF): Select the Buffered Bypass if you use long lengths of cable
between your pedals and your amplifier, or employ a long chain of pedals.
