Introducing the new Suhr PT-100 Pete Thorn Signature Edition with Matching 2x12 Deep Cab!

World renown guitarist Pete Thorn is not only known for his touring and session work with legendary artists such as Chris Cornell and Melissa Etheridge, but he's also considered by the guitar community to be one of the foremost authorities on tone.

After five years of extensive road testing and countless hours spent modifying his original PT-100 amplifier, Suhr has created the ultimate, no compromise, 3-channel amp - now MIDI switchable.

The PT-100 Signature Edition is available in a classic black tolex and appointed with black knobs and a rich midnight anodized aluminium faceplate.

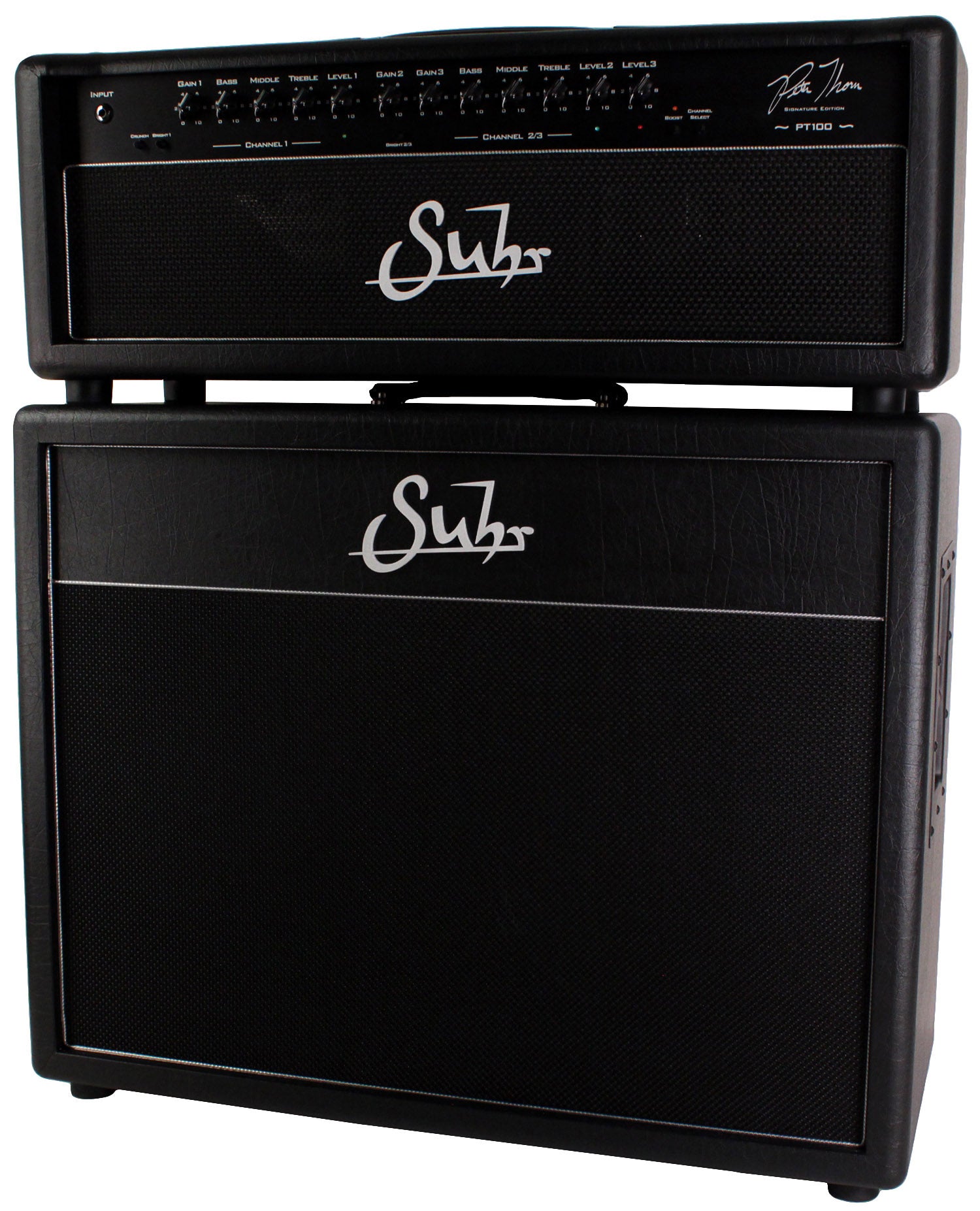

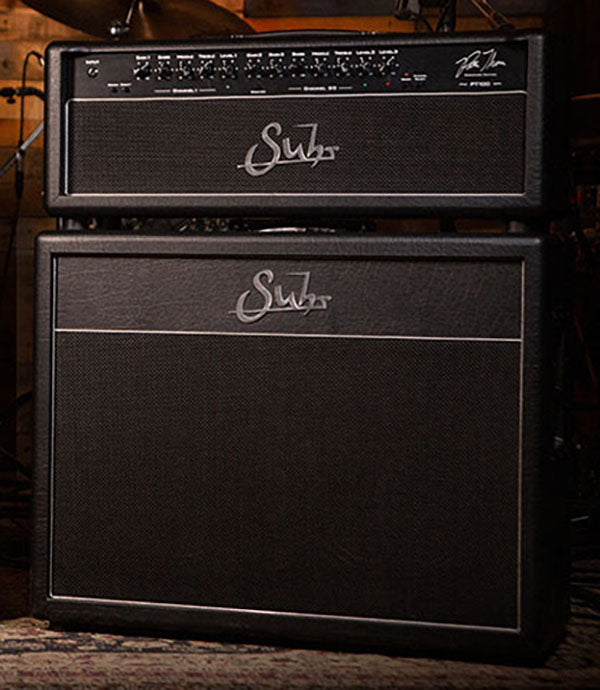

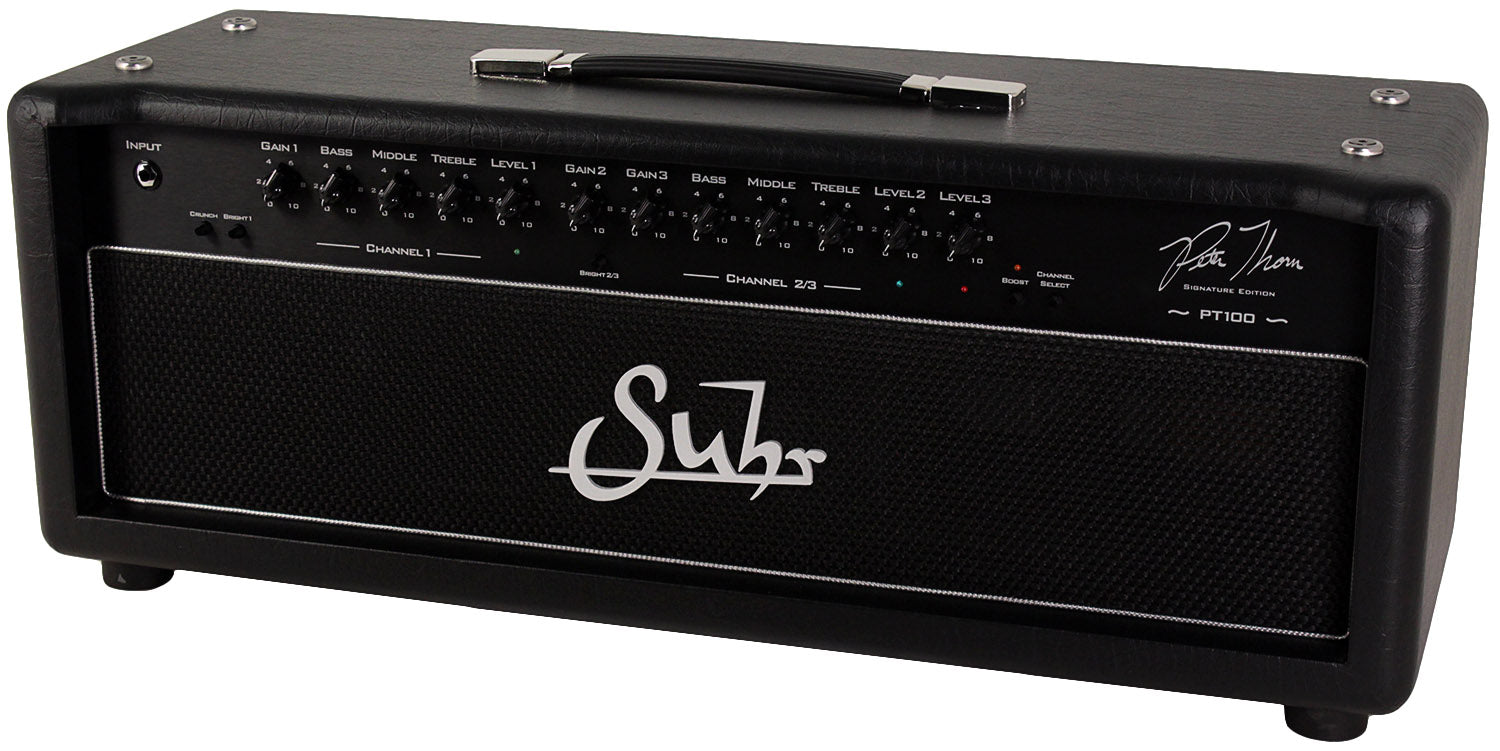

The Suhr PT-100 Signature Edition set features a 100 watt, three-channel tube amplifier head loaded with a custom "Plexi-style" output transformer, four EL-34 power tubes and six 12AX7 preamp tubes, a solid-state series/parallel effects loop, 4-button MIDI programmable footswitch.

The PT-100 clean channel offers a full range of American voiced clean sounds. The overdrive channel, distinctly British, features dual gain and level controls for independent rhythm and lead tones.


CHANNEL 1 (CLEAN)

CRUNCH:  Engages an additional gain stage for selected channel for a smooth crunchy overdrive sound.
BRIGHT 1:  Adds brightness and sparkle to Channel 1.
GAIN 1:  Adjusts the overall gain level of Channel 1.
BASS:  Adjusts the amount of low end. Turning it clockwise increases the amount of low frequencies, giving you a fuller tone. Turning it counter clockwise will reduce the effect and tighten up the bottom-end which is useful when performing at louder volumes.
MIDDLE:  Adjusts the midrange. Turning it clockwise increases the amount of mids, giving your tone a fatter response. Turning it counter clockwise will produce a mid-scooped sound.
TREBLE:  Adjusts the top end. Turning it clockwise increases the amount of treble, giving your tone clarity and brightness. Turning it counter clockwise will produce a warmer sound which is excellent for dialing in smooth fluid-like lead tones.
LEVEL 1 (MASTER VOLUME):  Adjusts the overall output of Channel 1

CHANNEL 2 / 3 (OVERDRIVE)

BRIGHT 2/3 SWITCH: Adds brightness and cut to Channel 2/3.
GAIN 2: Adjusts the overall gain level of Channel 2.
GAIN 3: Adjusts the overall gain level of Channel 3.
BASS: Adjusts the amount of low end. Turning it clockwise increases the amount of low frequencies, giving you a fuller tone. Turning it counter clockwise will reduce the effect and tighten up the bottom-end which is useful when performing at louder volumes.
MIDDLE: Adjusts the midrange. Turning it clockwise increases the amount of mids, giving your tone a fatter response. Turning it counter clockwise will produce a mid-scooped sound.
TREBLE: Adjusts the top end. Turning it clockwise increases the amount of treble, giving your tone clarity and brightness. Turning it counter clockwise will produce a warmer sound which is excellent for dialing in smooth fluid-like lead tones.
LEVEL 2 (MASTER VOLUME): Adjusts the overall output of Channel 2
LEVEL 3 (MASTER VOLUME): Adjusts the overall output of Channel 3
BOOST: Adds additional boost to selected channel.
CHANNEL SELECT SWITCH: Selects between Channels 1, 2 & 3

---------------------------------------------

FEEDBACK - Adjusts the overall feel of the power amp section from smooth and spongy at lower settings to tight and aggressive at higher settings.

PRESENCE - Adjusts the amount of high frequencies. Turning it clockwise will add more cut and sparkle.

DEPTH SELECT SWITCH - Selects the amount of low-end resonance added to your amplifiers overall sound.
Full: + 4dB
Half: + 2dB
Off: Out of the circuit

EFFECTS LOOP - The PT-100 comes standard with a solid state series/parallel FX loop.

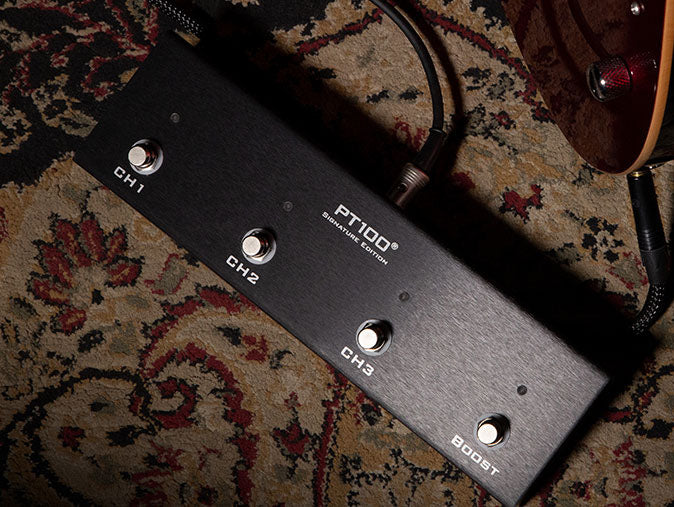

FOOTSWITCH - The PT-100 comes equipped with a 4-button MIDI programmable footswitch

Head Specifications:

  • Output: 100 Watts RMS, 3 Channels
  • Power Tubes: 4 x EL34
  • Preamp Tubes: 6 x 12AX7

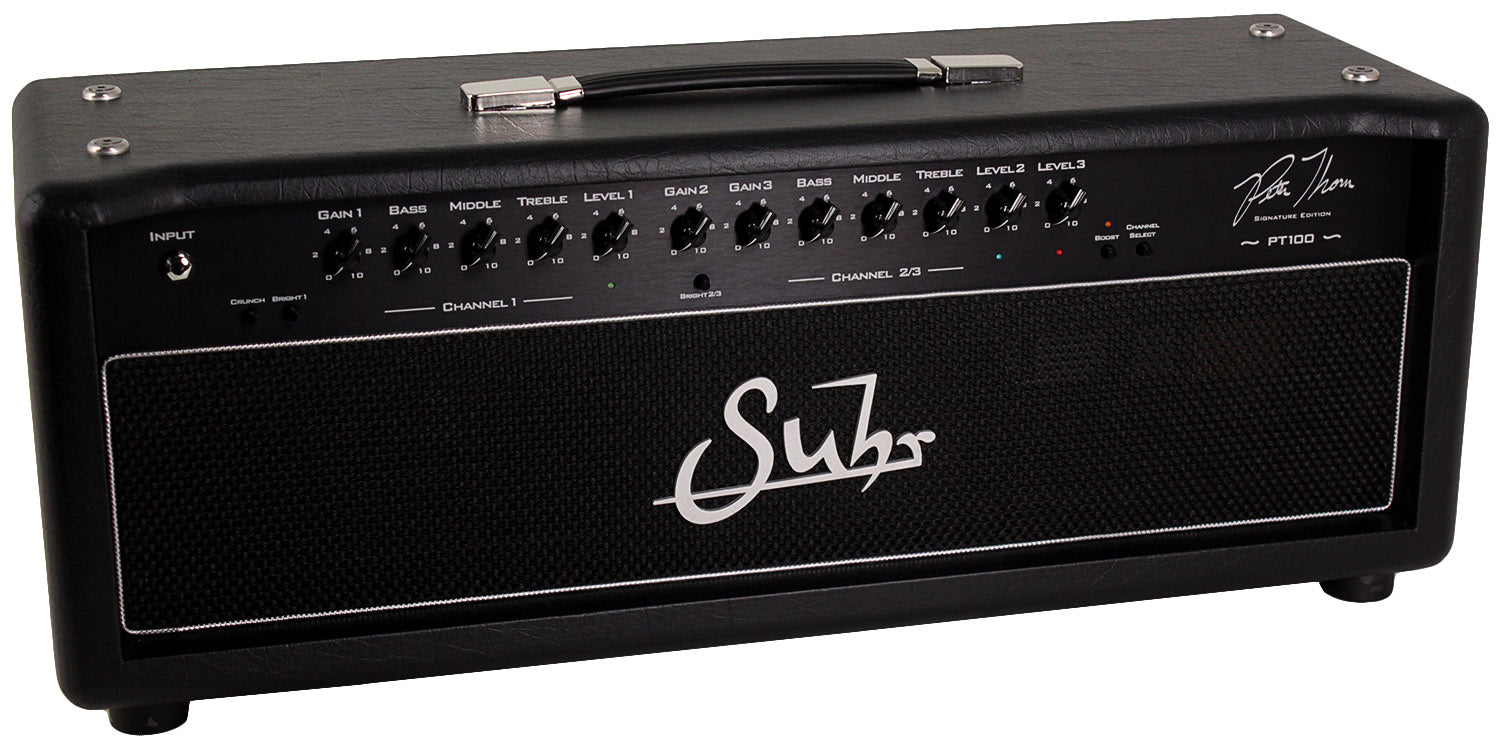

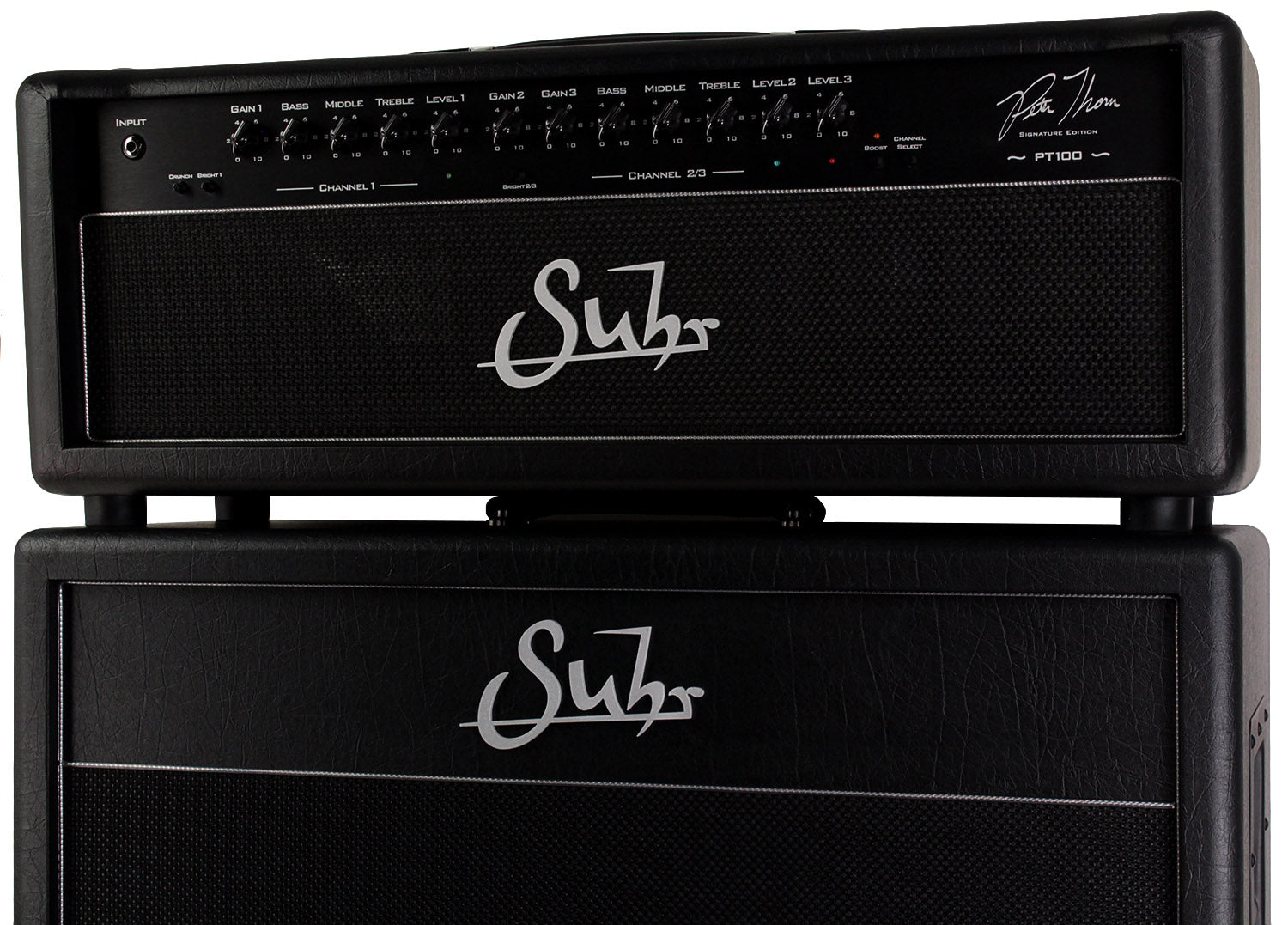

  • Front Panel:
    Channel 1: Input, Crunch Switch , Bright Switch 1, Gain 1, Bass, Middle, Treble, Level 1
    Channel 2/3: Bright Switch 2/3, Gain 2, Gain 3, Bass, Middle, Treble, Level 2, Level 3, Channel Select, Boost Switch

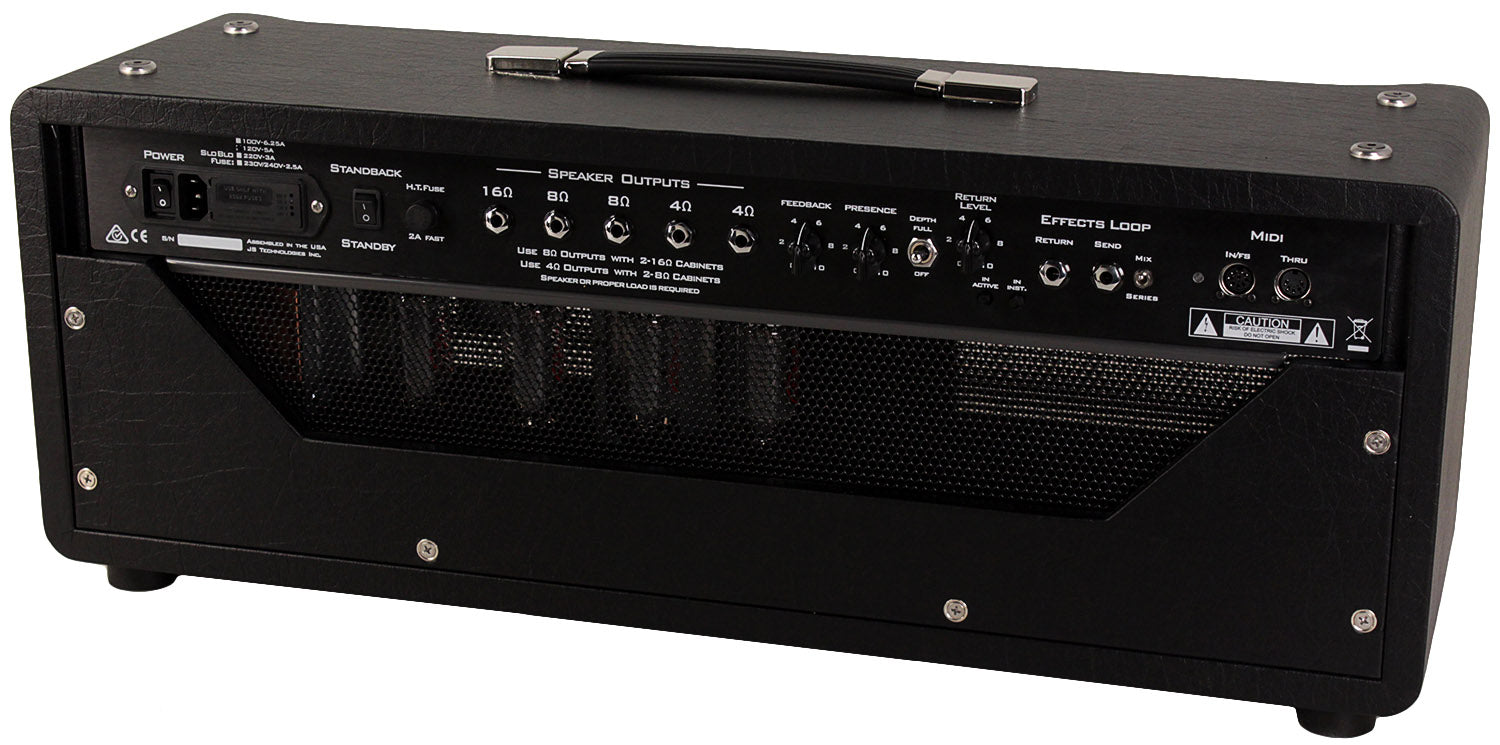

  • Back Panel: Power Select Switch, Fuse / Power Entry Module, H.T. Fuse, Speaker Outputs, (4Ω, 8Ω, & 16Ω), Feedback, Presence, Depth Switch, Effects Loop Return Level, Send and Return and MIDI
  • Other Features: Effects Loop solid state series/parallel, Boost Switch, 4-Button Programmable Footswitch
  • Dimensions: 28.5” x 11.25” x 9.5”
  • Weight: 55 lbs.

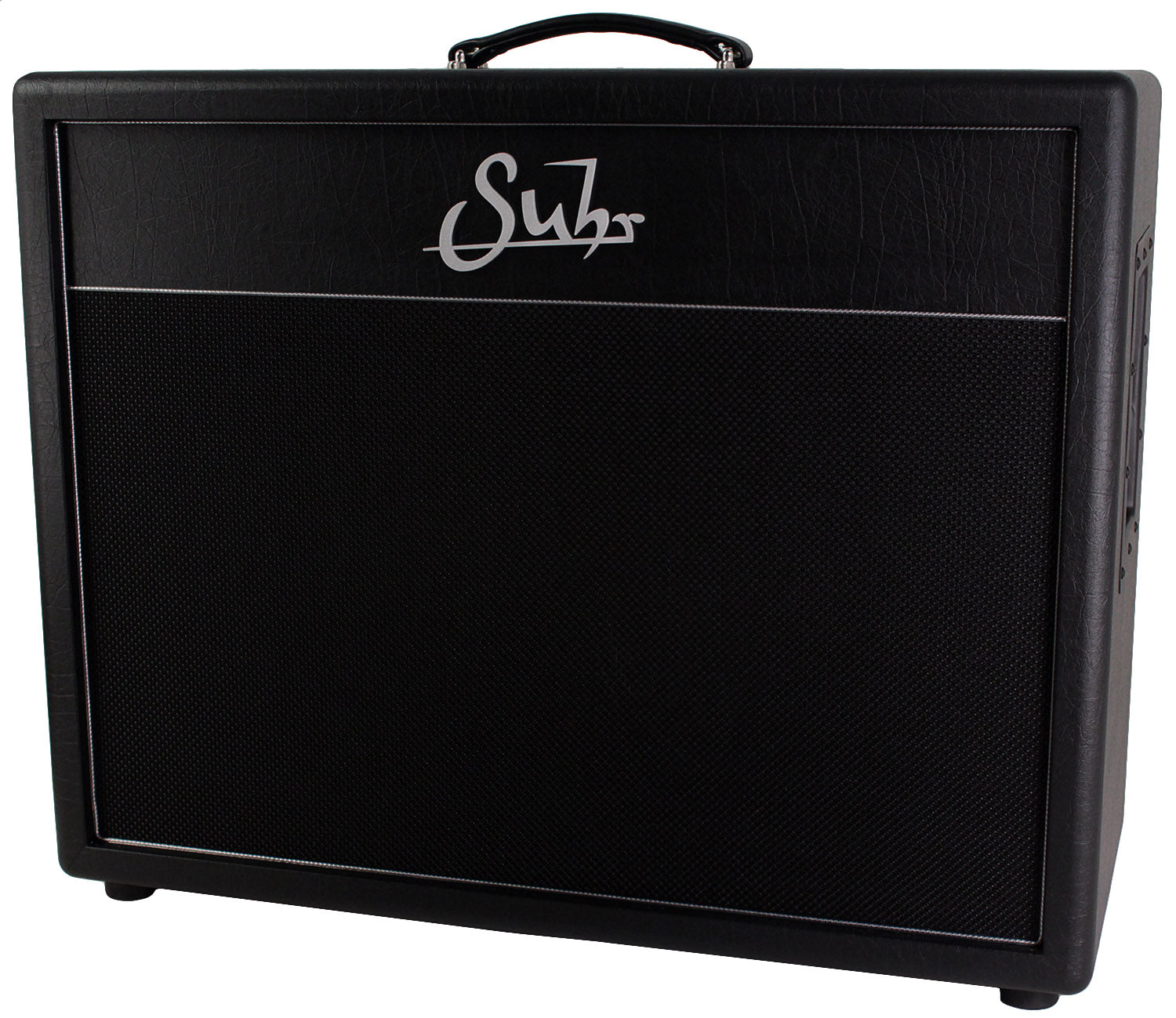

Speaker Cabinet Specifications:

  • Power: 150 Watts
  • Impedance: 8 Ohm
  • Speakers: 2 x Celestion G12H-75 Creambacks
  • Dimensions: 28.5”W x 23”H x 12”D, Closed Back
  • Weight: 60 lbs.
